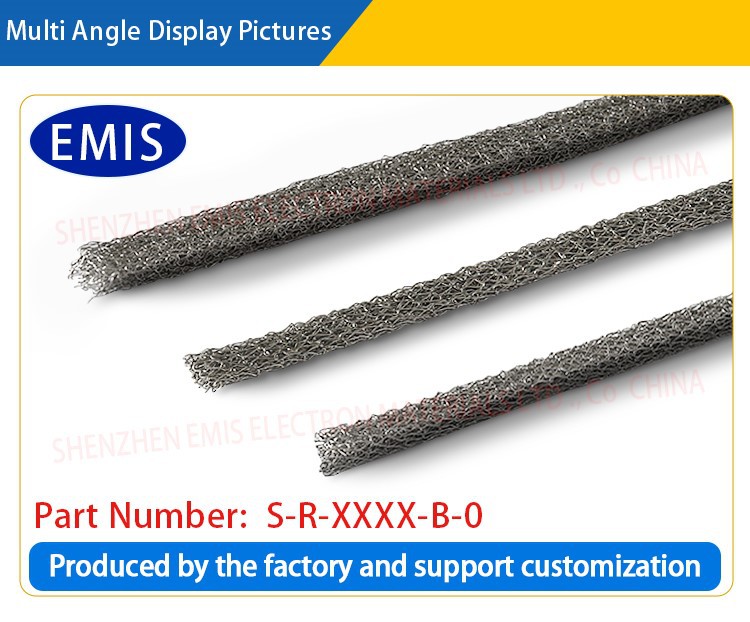

Knitted Hlau Mesh Gasket





Peb muab Knitted Wire Mesh Gasket uas yog ib hom EMC gasket siv rau EMI thiab RFI shielding. Nws yog tsim los ntawm cov khoom siv raw khoom zoo tshaj plaws thiab cov cuab yeej siv siab heev. Hlau Mesh Gasket los ntawm ntau qhov sib txawv kom haum rau kev siv sib txawv. Nws tuaj yeem yog puag ncig, duab plaub, ob npaug puag ncig, puag ncig nrog tus Tsov tus tw thiab lwm yam.





Tshooj Naj Npawb	Txoj kab uas hla φ	Tshooj Naj Npawb	Txoj kab uas hla φ
S-C-2424-B-0	φ2.4mm+0.5/-0 0mm	S-C-7979-B-0	φ7.9mm+0.8/{4}}0mm
S-C-3232-B-0	φ 3.2mm+0.5/-0 0mm	S-C-9595-B-0	φ9.5mm+0.8/{4}}0mm
S-C-4040-B-0	φ4.	S-C-1313-B-0	φ12.7mm+0.8/-0 0mm
S-C-4848-B-0	φ4.8mm+0.8/-0 0mm	S-C-1515-B-0	φ15.9mm+10/{4}} 0mm
S-C-6464-B-0	φ6.4mm+0.8/-0 0mm	S-C-2525-B-0	φ25.4mm+10/{4}} 0mm



Tshooj Naj Npawb	Dav	siab	Tshooj Naj Npawb	Dav	siab
S-R-1616-B-0	1.6+0.3/-0mm	1.6+0.3/-0mm	S-R-7932-B-0	7. 9+0.8/{3}} 0mm	3. 2+0.5/-0mm
S-R-3216-B-0	3. 2+0.3/-0mm	1.6+0.3/-0mm	S-R-9532-B-0	9. 5+0.8/-0 0mm	3. 2+0.5/-0mm
S-R-4816-B-0	4 8+0.4/-0mm	1.6+0.3/-0mm	S-R-1332-B-0	12. 7+0.8/{3}} 0mm	3. 2+0.5/-0mm
S-R-7916-B-0	7. 9+0.8/{3}} 0mm	1.6+0.3/-0mm	S-R-1932-B-0	19. 1+1 {2}}/-0 {4}} hli	3. 2+0.5/-0mm
S-R-9516-B-0	9. 5+0.8/-0 0mm	1.6+0.3/-0mm	S-R-2532-B-0	25. 4+1	3. 2+0.5/-0mm
S-R-1316-B-0	12. 7+0.8/{3}} 0mm	1.6+0.3/-0mm	S-R-4848-B-0	4. 8+0.8/-0 0mm	4. 8+0.8/-0 0mm
S-R-2424-B-0	2. 4+0.5/-0 0mm	2. 4+0.5/-0 0mm	S-R-6448-B-0	6. 4+0.8/{3}} 0mm	4. 8+0.8/-0 0mm
S-R-3224-B-0	3. 2+0.5/-0 0mm	2. 4+0.5/-0 0mm	S-R-2532-B-0	7. 9+0.8/{3}} 0mm	4. 8+0.8/-0 0mm
S-R-4824-B-0	4. 8+0.8/-0 0mm	2. 4+0.5/-0 0mm	S-R-6464-B-0	6. 4+0.8/{3}} 0mm	6. 4+0.8/{3}} 0mm
S-R-6424-B-0	4. 8+0.8/-0 0mm	2. 4+0.5/-0 0mm	S-R-7964-B-0	7. 9+0.8/{3}} 0mm	6. 4+0.8/{3}} 0mm
S-R-9524-B-0	9. 5+0.8/-0 0mm	2. 4+0.5/-0 0mm	S-R-9564-B-0	9. 5+0.8/-0 0mm	6. 4+0.8/{3}} 0mm
S-R-9516-B-0	9. 5+0.8/-0 0mm	1.6+0.3/-0mm	S-R-1364-B-0	12. 7+0.8/{3}} 0mm	6. 4+0.8/{3}} 0mm
S-R-9516-B-0	9. 5+0.8/-0 0mm	1.6+0.3/-0mm	S-R-9595-B-0	9. 5+0.8/-0 0mm	9. 5+0.8/-0 0mm



Tshooj Naj Npawb	Dav	siab	Tshooj Naj Npawb	W	H
SB-4113-MD-0	12.7+1.6/{3}} {4}}mm	4.1+0.5/-0 0mm	SB-1988-MD-0	19.1+1.6/{3}} 0mm	8. 8+0.8/{3}} 0mm
SB-1941-MD-0	19.1+1.6/{3}} 0mm	4.1+0.5/-0 0mm	SB-2588-MD-0	25.4+1.6/{3}} {4}}mm	8. 8+0.8/{3}} 0mm
SB-1657-MD-0	{{0}}.6/-0.0mm	5. 7+0.8/-0 0mm	SB-1910-MD-0	19.1+1.6/{3}} 0mm	104+1.2/-0.0mm
SB-1957-MD-0	{{0}}.6/-0.0mm	5. 7+0.8/-0 0mm	SB-2810-MD-0	28. 5+2 {2}}/-0 {4}}mm	104+1.2/-0.0mm
SB-1972-MD-0	19.1+1.6/{3}} 0mm	7. 2+0.8/{3}} 0mm	SB-2513-MD-0	25.4+1.6/{3}} {4}}mm	13.6+1.6/-0 0mm
SB-2572-MD-0	{{0}}.6/-0.0mm	7. 2+0.8/{3}} 0mm	SB-3113-MD-0	31. 2+2 {2}}/-0 {4}}mm	13.6+1.6/-0 0mm



Nco tseg:

1. Braided hlau khoom: beryllium tooj liab, monel hlau, tinned tooj liab hlau, tinned tooj liab clad steel hlau, tinned tooj liab clad hlau hlau, stainless hlau hlau, thiab lwm yam.;

2. Qhov saum npoo ntawm cov hlau braided tuaj yeem ua xim ntuj; tinned; npib tsib xee-plated; nyiaj-plated; kub-plated, thiab lwm yam;

3. Rau cov ntaub ntawv tshwj xeeb thiab cov qauv tsis zoo, kev hloov kho tau txais kev txhawb nqa. Thov hu rau peb tus thawj tswj kev muag khoom.

Braided hlau cov khoom luv luv naj npawb: TS-AABB-MD-P

Lus ceeb toom:

T sawv cev rau hom:

T yog B: beryllium tooj liab hlau braided hlau; T yog S: khoom hlau hlau mesh; T yog C: cored hlau hlau mesh; T yog S: kaw hlau hlau mesh;

T yog W: hlau hlau mesh siv;

S sawv cev rau cov duab:

S yog C: round; S yog R: square; S yog D: D zoo; S yog P: P puab; S yog B: B zoo li;

AABB: cov khoom tsim loj.

M sawv cev rau cov khoom siv: M yog B: beryllium tooj liab; M yog S: stainless hlau xaim; M yog M: monel hlau; M yog D: tinned phosphor tooj liab hlau; M yog F: tinned tooj liab clad steel hlau;

D sawv cev rau cov khoom tseem ceeb: D yog 0: tsis muaj; D yog N: chloroprene roj hmab; D yog S: silicone roj hmab; D yog P: polyurethane daim txhuam cev;

P piv txwv li: 0: xim xim; P yog S: beryllium tooj liab tinned; P yog N: beryllium tooj liab plated nrog npib tsib xee; P yog Z: beryllium tooj liab plated nrog zinc.





Qhia

Knitted wire mesh gasket yog cov khoom sib xyaw ua ke ua los ntawm knitted hlau mesh thiab cov khoom siv elastic. Piv nrog rau woven hlau mesh gasket, cov hlau hlau ntawm knitted hlau mesh gasket yog woven los ntawm tshwj xeeb knitting tshuab, uas muaj cov yam ntxwv sib txawv thiab kev ua tau zoo. Nws yog dav siv nyob rau hauv kev lag luam uas yuav tsum tau high sealing, muaj zog electromagnetic shielding nyhuv los yog conductive muaj nuj nqi, muab zoo heev sealing, poob siab absorbing thiab tiv thaiv kev cuam tshuam kev ua tau zoo.

Nta:

Electromagnetic shielding: zoo tiv thaiv sab nraud electromagnetic cuam tshuam (EMI) thiab xov tooj cua zaus cuam tshuam (RFI), tiv thaiv kev ua haujlwm ntawm cov cuab yeej rhiab heev.

Sealing kev ua tau zoo: cov ntaub ntawv elastomeric muab kev ruaj ntseg sealing nyhuv los tiv thaiv cov kua, roj los yog hais.

Conductivity: hlau hlau mesh ua kom zoo conductivity thiab tiv thaiv cov khoom siv hluav taws xob los ntawm kev puas tsuaj zoo li qub.

Kev tiv thaiv kev vibration thiab kev poob siab: zoo txo ​​qhov kev puas tsuaj ntawm kev co rau cov khoom siv thiab txuas ntxiv lub neej kev pab cuam ntawm cov khoom siv.

Kub kub thiab corrosion kuj: siv kub resistant, stainless hlau thiab lwm yam ntaub ntawv, nws muaj peev xwm ua hauj lwm stably thiab mus sij hawm ntev nyob rau hauv huab mob.

Cov txheej txheem tsim khoom

1. Kev xaiv thiab kho cov hlau hlau

Ua ntej, xaiv cov khoom siv hlau tsim nyog. Cov ntaub ntawv muaj xws li stainless hlau, tooj liab, beryllium tooj liab, npib tsib xee thiab lwm yam hlau, uas muaj cov conductivity zoo heev, kub tsis kam thiab corrosion kuj. Txoj kab uas hla, lub zog, conductivity thiab lwm yam khoom ntawm cov hlau hlau yuav tsum tau txiav txim siab raws li qhov yuav tsum tau ua ntawm lub gasket zaum kawg.

Kev kho deg: txhawm rau txhim kho corrosion kuj thiab ua haujlwm ntev ntawm cov hlau hlau, cov hlau hlau feem ntau yog kho qhov chaw (xws li npib tsib xee plating, chrome plating, passivation, thiab lwm yam) kom ntseeg tau tias nws ruaj khov hauv kev siv mus ntev.

2. Knitting thiab weaving ntawm hlau hlau

Cov hlau hlau yog interwoven rau hauv ib lub mesh los ntawm txoj kev knitting. Knitting yog nruj dua thiab ruaj khov dua li cov txheej txheem weaving, uas tuaj yeem txhim kho tag nrho lub zog thiab ua haujlwm ntev ntawm cov hlau hlau mesh. Cov txheej txheem weaving ntawm knitted hlau hlau mesh feem ntau muaj xws li dawb weave thiab twill weave, thiab lwm yam, thiab cov txheej txheem weaving tsim nyog raug xaiv raws li cov kev thov tshwj xeeb ntawm cov khoom.

Cov txheej txheem weaving: Nyob rau hauv lub tshuab knitting, cov hlau hlau yog interwoven rau hauv ib lub mesh los ntawm cov koob thiab xov thav duab ntawm lub tshuab knitting los tsim ib tug mesh qauv ntawm txawv specifications. Knitted hlau xaim mesh feem ntau muaj lub zog tensile zoo thiab tsim kua muag, thiab tsim nyog rau qhov chaw muaj kev kub ntxhov lossis kub.

High kub nias: Cov hlau mesh yog ua ke nrog cov khoom siv elastomer los ntawm kev kub kub thiab siab los xyuas kom meej tias ob qho tib si ruaj khov los tsim cov qauv sib xyaw.

Cov txheej txheem Bonding: Koj tuaj yeem siv cov kua nplaum muaj zog lossis cov nplaum tshwj xeeb los txuas cov hlau mesh nrog cov khoom siv elastomer kom ntseeg tau tias nws lub sijhawm ntev thiab kev sib khi.

3. Vulcanization lossis kho kev kho mob

Rau cov khoom siv roj hmab elastomer, kev kho vulcanization feem ntau yog xav tau. Cov txheej txheem vulcanization cross-links molecular chains ntawm cov roj hmab los ntawm kev siv cua sov thiab tshuaj lom neeg, pab txhawb elasticity thiab kub thiab hnav tsis kam.

Kev kho: kev kho Vulcanization lossis lwm cov txheej txheem kho ua rau cov elastomer muaj kev sib khi zoo, kev ua haujlwm siab thiab kub ua haujlwm, thiab txhim kho kev ua haujlwm zoo ntawm lub gasket.

4. Txiav thiab sib sau

Txiav lub knitted hlau mesh gasket uas tau muab tso rau hauv qhov xav tau qhov loj thiab cov duab. Cov kauj ruam no feem ntau yuav tsum tau siv cov cuab yeej txiav precision kom paub meej tias cov khoom loj yog qhov tseeb, cov npoo yog du, thiab nws tuaj yeem ua tau raws li qhov yuav tsum tau ua ntawm cov khoom sib txawv.

Precision txiav: Siv laser txiav los yog pwm txiav kom paub meej qhov zoo ntawm txhua qhov gasket thiab zam kev puas tsuaj rau cov hlau mesh lossis elastomer thaum lub sijhawm txiav.



Cov cheeb tsam thov

Cov khoom siv hluav taws xob: siv rau electromagnetic shielding thiab electrostatic paug tiv thaiv kom ntseeg tau tias cov cuab yeej tiv thaiv los ntawm kev cuam tshuam sab nraud.

Automotive kev lag luam: siv nyob rau hauv on-board hluav taws xob cov cuab yeej los tiv thaiv electromagnetic cuam tshuam thiab muab sealing tiv thaiv.

Aerospace: Muab electromagnetic shielding thiab sealing tiv thaiv rau high-precision aerospace cov cuab yeej los xyuas kom meej nws kev ntseeg siab nyob rau hauv hnyav ib puag ncig.

Cov cuab yeej siv: siv rau kev sib khi thiab kev tiv thaiv ntawm ntau lub tshuab thiab cov cuab yeej siv los tiv thaiv cov kua xau thiab txhim khu kev tiv thaiv kev vibration.

Kev lag luam hluav taws xob: Muab kev tiv thaiv hluav taws xob zoo thiab kev tiv thaiv hauv av rau cov khoom siv hluav taws xob kom ntseeg tau tias cov khoom siv ruaj khov.

Peb qhov zoo:

Peb yog lub tuam txhab tshiab tshwj xeeb hauv kev tshawb fawb thiab kev tsim kho, tsim khoom thiab muag khoom ntawm knitted hlau mesh gaskets, cog lus los muab cov khoom zoo sealing, shielding, conductive thiab shockproof kev daws teeb meem rau cov neeg siv khoom thoob ntiaj teb. Lub tuam txhab muaj cov txheej txheem ntau lawm thiab kev sib sau ua ke, thiab muaj peev xwm muab cov khoom lag luam customized thiab kev pabcuam rau cov neeg siv khoom hauv ntau qhov chaw.

Ntawm peb lub Hoobkas, peb nkag siab tias cov ntawv thov sib txawv yuav muaj qhov tshwj xeeb. Yog vim li cas peb knitted hlau mesh gaskets yog tag nrho customizable thiab hloov kho. Peb muab ntau yam kev xaiv, suav nrog ntau qhov ntau thiab tsawg, cov duab, thicknesses thiab cov txheej txheem kev teeb tsa, tso cai rau peb cov neeg siv khoom nrhiav kev daws teeb meem kom tau raws li lawv cov kev xav tau tshwj xeeb EMI shielding. Peb pab neeg ntawm cov kws tshaj lij ua haujlwm nrog cov neeg siv khoom kom nkag siab txog lawv cov kev xav tau thiab muab kev cai gaskets uas haum rau lawv cov ntawv thov.

Tiv tauj peb:

Txawm hais tias koj xav tau customized knitted hlau mesh gaskets los yog muaj lus nug thaum lub sij hawm cov txheej txheem xaiv cov khoom, peb yuav ua siab dawb muab koj nrog kev cob qha kev pab cuam thiab tom qab-muag kev pab cuam. Xav tias dawb hu rau peb kom paub meej ntxiv txog peb cov khoom thiab cov kev pabcuam.



Khoom tsim nyog



Knitted Hlau Mesh Gasket Manufacturing txheej txheem

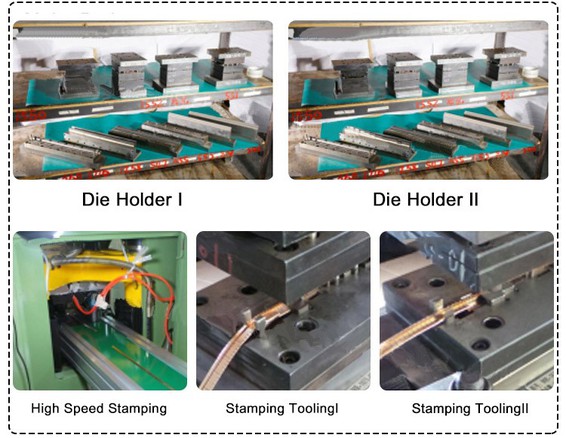

Tsim Thiab Tsim Muaj Peev Xwm Ntawm Cov Cuab Yeej

Cov khoom siv loj:

Precision grinder: 4 poob lawm;

Milling tshuab: 3 teeb;

Drilling tshuab: 3 teeb;

Hlau-electrode txiav: 2 teeb;

millwrights: 1 set;

lwm: 5set



Yam ntxwv Parameter Ntawm BeCu Raw Khoom

Chemical Component

Be-----------1.8%-2.%(siab beryllium series)

Cobalt + Nickel --------- 0.20% (tsawg kawg)

Cobalt + Nickel + Hlau ------ 0.60% (feem ntau)

tooj liab-------qhov seem



Lub cev khoom

Hluav taws xob conductivity (IACS) ---22-25%

Elasticity modulus (psi) --- 18.5 * 10⁶

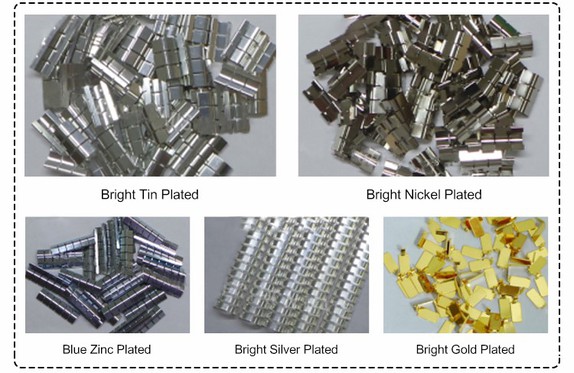

Electroplating ntawm Beryllium Copper ntau lawm nto

Cov duab zoo nkauj ntawm cov khoom siv electroplating



Xa, shipping thiab pab

Kev xa khoom sai sai

1. Lub sij hawm ua khoom loj: tsawg dua 3 hnub;

2.Maximum lub sij hawm rau cov khoom tshwj xeeb: tsawg tshaj li 7 hnub.

3. Lub Sijhawm Ua Haujlwm ntawm cov qauv dawb: tsawg dua 2 hnub.

4. Lub sij hawm xa tuaj rau cov khoom tshwj xeeb: tsawg dua 7 hnub.

5.Ua tiav lub sij hawm ntawm phau ntawv qauv ntau lawm: tsawg dua 7 hnub





FAQ

Q1: Dab tsi yog knitted hlau mesh gasket?

A1: Knitted wire mesh gasket yog lub gasket ua los ntawm cov hlau mesh thiab cov khoom siv elastomer. Nws muab lub zog siab ntawm cov hlau mesh thiab kev sib khi ntawm cov khoom siv elastomer, thiab muaj ntau yam haujlwm xws li electromagnetic shielding, sealing, conductivity, thiab shockproof. Nws yog dav siv hauv electronics, tsheb, aerospace thiab lwm yam kev lag luam.



Q2: Puas yog cov txheej txheem tsim cov hlau mesh gasket nyuaj?

A2 Cov txheej txheem tsim khoom ntawm knitted hlau mesh gasket yog qhov nyuaj, thiab nws yuav tsum mus dhau cov kauj ruam hauv qab no: xaiv thiab ua cov hlau hlau, knitting thiab weaving, elastomer khoom molding, ua ke ntawm hlau mesh thiab elastomer, vulcanization los yog curing, precision txiav, kev soj ntsuam zoo thiab kev soj ntsuam, thiab lwm yam. Txhua qhov txuas yuav tsum muaj kev tswj xyuas zoo los xyuas kom meej tias cov khoom ua tau zoo tshaj plaws.



Q3: Dab tsi yog qhov txawv ntawm knitted hlau mesh gaskets thiab lwm yam gaskets?

A3 Piv nrog cov tsoos roj hmab gaskets thiab hlau gaskets, knitted hlau mesh gaskets muaj cov yam ntxwv tseem ceeb hauv qab no:

Muaj zog electromagnetic shielding muaj nuj nqi: Nws tuaj yeem tiv thaiv kev cuam tshuam ntawm electromagnetic cuam tshuam thiab tsim nyog rau qee lub sijhawm uas yuav tsum muaj kev sib raug zoo ntawm electromagnetic.

Kev sib khi zoo dua: Los ntawm kev sib xyaw ntawm elastomer thiab hlau mesh, nws muab cov nyhuv sealing zoo dua.

Kev tiv thaiv ib puag ncig hnyav: Hloov mus rau qhov chaw ua haujlwm hnyav xws li kub thiab kub siab, thiab tswj kev ua haujlwm zoo.

Kev poob siab zoo heev: Kev sib xyaw ua ke ntawm cov ntaub ntawv elastomer ua rau knitted hlau mesh gaskets muaj zog poob siab thiab kev poob siab ua haujlwm.



Q4: Xaiv txoj cai knitted hlau mesh gasket?

A4 Thaum xaiv ib lub tshuab knitted hlau mesh gasket, koj yuav tsum xav txog cov hauv qab no:

Daim ntawv thov ib puag ncig: xws li kub, siab, corrosiveness, vibration, thiab lwm yam.

Electromagnetic shielding yuav tsum tau: Yog tias koj xav tau los tiv thaiv electromagnetic cuam tshuam, xaiv cov hlau mesh gasket nrog zoo electromagnetic shielding kev ua tau zoo.

Cov kev cai sealing: Xaiv cov khoom tsim nyog raws li hom nruab nrab uas yuav tsum tau muab kaw (ntaus, kua, thiab lwm yam).

Durability thiab lub neej: Xaiv cov khoom siv ruaj khov uas haum rau kev siv mus ntev.



Q5: Dab tsi yog cov khoom siv rau hlau mesh gaskets?

A5: Cov khoom muaj xws li:

Stainless hlau: Nws muaj kev tiv thaiv corrosion zoo heev thiab kub tsis kam, thiab feem ntau yog siv rau hauv cov ntawv thov uas yuav tsum tau ua haujlwm siab.

Beryllium tooj liab: muaj hluav taws xob zoo thiab tsim nyog rau daim ntawv thov electromagnetic shielding.

Nickel alloy: muaj qhov kub thiab txias tsis kam tiv thaiv corrosion, haum rau qhov chaw ua haujlwm huab cua.

Copper: muaj cov khoom siv hluav taws xob zoo thiab tsim nyog rau kev tiv thaiv thiab kev tiv thaiv hauv cov khoom siv hluav taws xob.



Q6: Puas tuaj yeem woven hlau mesh gaskets customized raws li cov neeg siv khoom xav tau?

A6: Yog lawm, knitted hlau mesh gaskets tuaj yeem kho raws li cov kev xav tau tshwj xeeb ntawm cov neeg siv khoom. Qhov no suav nrog customizing lub aperture ntawm cov hlau mesh, cov khoom siv ntawm cov hlau, hom elastomer, qhov loj thiab cov duab ntawm lub gasket, thiab lwm yam.



Q7: Yuav ua li cas tswj thiab tu rau knitted hlau mesh gaskets?

A7: Kev tshuaj xyuas tsis tu ncua: tsis tu ncua xyuas qhov ncaj ncees ntawm lub gasket kom ntseeg tau tias tsis muaj kev puas tsuaj, hnav lossis kev laus.

Ntxuav: Tsis txhob siv cov kuab tshuaj muaj zog heev thaum ntxuav kom tsis txhob ua rau cov khoom puas. Nws raug nquahu kom so nrog cov tshuaj tsis huv thiab cov ntaub mos muag.

Hloov: Yog tias lub gasket nyob rau hauv ib puag ncig huab cua ntev, hloov nws tsis tu ncua kom ntseeg tau tias cov khoom siv tau zoo.
