EMI tooj liab ntiv tes Gasket



Peb muab EMI tooj liab ntiv tes gasket ntawm superior resilience. Cov gaskets kuj muaj cov khoom zoo rov qab los, txhais tau tias lawv tuaj yeem rov qab mus rau lawv cov duab qub tom qab compression thiab decompression cycles.







Tshooj Naj Npawb	T (mm)	A	B	C	P	S	Lmax	Nodes	Xim Xim
MB -1078-01	0.1	20.3	8.1	11.2	9.52	0.81	609mm ua	64	Bright tiav

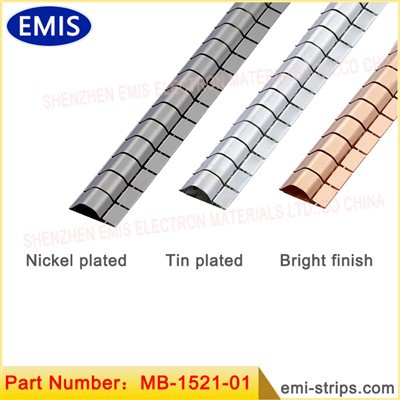

MB-1078-0S/N	0.1	20.3	8.1	11.2	9.52	0.81	609mm ua	64	-0S: Tin / -0N: Nickel
MB-1078C-01	0.1	20.3	8.1	11.2	9.52	0.81	7.62 M	800	kauj; Bright tiav
MB -2078-01	0.08	20.3	8.1	11.2	9.52	0.81	609mm ua	64	Siv 0.08 hli ua
Re: Ntev tuaj yeem txiav rau hauv X nodes, X=1.2.3.4..., Qhov saum npoo kuj tuaj yeem plated nrog kub. Nyiaj & Zinc thiab lwm yam;
Lus Cim: Cov node ntev yog muaj plaub qhov luv luv, xa mus rau 38.1 hli.



EMI tooj liab ntiv tes gaskets muaj ob peb yam uas ua rau lawv zoo rau electromagnetic cuam tshuam (EMI) shielding. Nov yog qee qhov tseem ceeb ntawm cov gaskets:

Khoom siv: EMI tooj liab ntiv tes gaskets feem ntau yog tsim los ntawm cov khoom siv tooj liab zoo heev. Tooj liab yog ib qho zoo heev conductor ntawm hluav taws xob thiab muaj superior tiv thaiv zoo tiv thaiv EMI.

Finger Design: Cov gaskets feature ntiv tes zoo li qhov projections lossis ntiv tes raws lawv qhov ntev. Cov ntiv tes no muab ntau lub ntsiab lus ntawm kev sib cuag thaum compressed, kom ntseeg tau tias muaj kev sib txuas hluav taws xob zoo ntawm qhov chaw sib txuas.

Flexibility: Copper ntiv tes gaskets yog tsim los hloov tau yooj yim, cia lawv ua raws li qhov tsis sib xws mating nto thiab tswj kev sib cuag zoo txawm tias nyob rau hauv me ntsis kev hloov pauv hauv qhov sib txawv.

Compression thiab rov qab: Cov gaskets yog engineered los compression thaum ntsia nruab nrab ntawm mating nto. Lub compression quab yuam siv los ntawm cov ntiv tes ua kom muaj kev sib khi nruj thiab tsis tu ncua, txo qhov khoob ntawm qhov hluav taws xob hluav taws xob tuaj yeem khiav tawm lossis nkag mus. Cov gaskets kuj muaj cov khoom zoo rov qab los, txhais tau tias lawv tuaj yeem rov qab mus rau lawv cov duab qub tom qab compression thiab decompression cycles.

EMI Shielding Effectiveness: Copper finger gaskets muab qib siab ntawm EMI tiv thaiv kev ua tau zoo, txo qis kev sib kis thiab kev nqus ntawm electromagnetic tsis. Lawv pab muaj cov hluav taws xob hluav taws xob tso tawm nyob rau hauv ib puag ncig, tiv thaiv kev cuam tshuam nrog lwm yam khoom siv hluav taws xob thiab tiv thaiv cov khoom siv hluav taws xob los ntawm lwm qhov chaw EMI.

Daim ntawv thov ntawm EMI tooj liab ntiv tes gaskets suav nrog:

Electronic Enclosures: Cov gaskets no feem ntau yog siv rau hauv kev sib khi ntawm cov khoom siv hluav taws xob, xws li lub computer chassis, khoom siv sib txuas lus, tswj vaj huam sib luag, thiab cov cuab yeej ntsuas. Lawv muab EMI shielding thiab pab tswj kev ncaj ncees ntawm lub enclosure lub electromagnetic ib puag ncig.

Aerospace thiab Kev Tiv Thaiv: EMI tooj liab ntiv tes gaskets pom kev siv dav hauv kev siv dav hlau thiab kev tiv thaiv, qhov chaw tiv thaiv EMI yog qhov tseem ceeb los ua kom ntseeg tau tias kev ua haujlwm ntawm avionics, radars, kev sib txuas lus, thiab cov khoom siv tub rog.

Cov Khoom Siv Kho Mob: Cov cuab yeej kho mob feem ntau suav nrog cov khoom siv hluav taws xob nkag siab thiab xav tau kev tiv thaiv los ntawm EMI. Cov ntiv tes tooj liab tuaj yeem siv rau hauv cov khoom siv kho mob xws li cov cuab yeej siv duab, cov neeg saib xyuas, thiab cov cuab yeej kuaj mob.

Automotive Electronics: Nrog rau qhov nyuaj ntawm automotive electronics, EMI shielding yog qhov tseem ceeb los tiv thaiv kev cuam tshuam ntawm ntau lub tshuab. Cov ntiv tes tooj liab yog siv rau hauv kev siv tsheb xws li infotainment systems, engine control units, and advanced driver help systems (ADAS).

Kev sib txuas lus: tooj liab ntiv tes gaskets yog siv rau hauv cov khoom siv sib txuas lus, suav nrog cov routers, keyboards, thiab cov chaw nres tsheb hauv paus, kom ntseeg tau tias EMI ntim thiab teeb liab ncaj ncees.





Hauv lub ntiaj teb niaj hnub no, cov khoom siv hluav taws xob tau ua lub luag haujlwm tseem ceeb hauv txhua yam ntawm peb lub neej. Los ntawm cov xov tooj smartphones mus rau cov khoom siv kho mob, cov cuab yeej no vam khom kev sib txuas thiab kev ua haujlwm tsis cuam tshuam. Txhawm rau kom ntseeg tau tias kev lag luam txhim khu kev qha, electromagnetic cuam tshuam (EMI) shielding yog qhov tseem ceeb tshaj plaws. Hauv lub ntiaj teb no, EMI tooj liab ntiv tes gaskets sawv tawm raws li kev daws teeb meem zoo tshaj plaws, muab qhov tshwj xeeb resilience thiab cov khoom rov qab los. Nyob rau hauv tsab xov xwm no, peb delve rau hauv cov yam ntxwv zoo kawg li ntawm cov gaskets, qhia txog lawv lub peev xwm los thaws rov qab mus rau lawv cov duab qub txawm tias tom qab compression thiab decompression cycles.

Qhov tseem ceeb ntawm EMI Copper Finger Gaskets:

EMI shielding yog ib qho tseem ceeb rau kev tswj cov teeb liab kev ncaj ncees thiab tiv thaiv tsis xav tau hluav taws xob hluav taws xob los ntawm kev cuam tshuam nrog cov khoom siv hluav taws xob rhiab heev. Tooj ntiv tes gaskets, tseem hu ua fingerstock gaskets, tau tshwm sim los ua ib qho kev daws teeb meem los daws cov teeb meem ntsig txog EMI. Cov gaskets no yog tsim los kom haum snugly nyob rau hauv lub seams thiab qhov khoob ntawm hluav taws xob enclosures, tsim ib tug robust conductive barrier uas zoo blocks EMI.

Superior Resilience:

Ib qho ntawm cov cwj pwm tseem ceeb tshaj plaws ntawm EMI tooj liab ntiv tes gaskets yog lawv qhov tshwj xeeb resilience. Cov gaskets no yog tsim los siv cov hlau zoo tooj liab, muaj npe nrov rau lawv cov khoom siv hluav taws xob thiab cov yam ntxwv conductive. Lub hauv paus elasticity thiab malleability ntawm tooj liab tso cai rau cov gaskets tiv thaiv compression rog yam tsis tas yuav deformation. Qhov kev tiv thaiv no ua kom muaj kev sib cuag zoo sib xws rau cov chaw sib txuas, tswj kev ncaj ncees ntawm EMI foob.

Cov khoom zoo rov qab:

Ntxiv nrog rau lawv qhov kev ua tau zoo, EMI tooj liab ntiv tes gaskets muaj cov khoom zoo rov qab. Tom qab compression thiab decompression cycles, cov gaskets tuaj yeem rov qab mus rau lawv qhov qub, yog li rov ua kom lawv cov sealing zoo. Cov yam ntxwv no yog qhov tseem ceeb rau cov ntawv thov uas yuav tsum muaj kev nkag mus rau cov khoom siv hluav taws xob rov qab, xws li hauv aerospace systems, lossis telecommunications infrastructure.

Xaus:

EMI tooj liab ntiv tes gaskets yog qhov tseem ceeb hauv lub ntiaj teb kev tiv thaiv hluav taws xob. Lawv qhov zoo tshaj plaws resilience thiab cov khoom siv rov qab ua rau lawv sib nrug los ntawm lwm cov kev tiv thaiv kev tiv thaiv, ua rau lawv nyiam xaiv rau cov ntawv thov tseem ceeb. Lub peev xwm los tiv thaiv kev rov ua dua compression thiab decompression mus tas li, thaum tswj xyuas lawv cov duab thiab kev sib tiv tauj, ua kom ntseeg tau thiab tiv thaiv EMI ntev. Raws li kev siv thev naus laus zis txuas ntxiv mus, qhov kev thov rau kev tiv thaiv kev daws teeb meem zoo tshaj plaws tsuas yog loj hlob, thiab EMI tooj liab ntiv tes gaskets yuav nyob twj ywm hauv ntej, tiv thaiv peb cov khoom siv hluav taws xob thiab ua kom tsis muaj kev cuam tshuam.

Khoom tsim nyog







Qhov zoo ntawm lub tuam txhab

Ob tus kws tshaj lij Tooling designers ob leeg muaj ntau tshaj 10 Xyoo ntawm kev tsim kev paub.Peb tawg los ntawm cov txheej txheem nyuaj nyob rau hauv lub stamping teb nrog imported tooling ua cov cuab yeej thiab haib tooling manufacturing muaj peev xwm.Ntau tshaj 15 txheej pwm tuaj yeem ua tiav txhua lub hlis.

Kev xa khoom sai: 7 hnub rau cov qauv coj mus kuaj thiab 16 hnub rau cov pwm ntau lawm.

Extraordinarily Tooling lub neej: peb lub tuam txhab txais tshwj xeeb pwm cov ntaub ntawv rau ntau tshaj 100 lab lub sij hawm.

Peb Lub Tuam Txhab tsuas yog siv cov khoom siv raw los ntawm BrushWellman Co., Ltd ntawm Asmeskas.

Cov khoom siv loj:

Precision grinder: 4 poob lawm;

Milling tshuab: 3 teeb;

Drilling tshuab: 3 teeb;

Hlau-electrode txiav: 2 teeb;

millwrights: 1 set;

lwm: 5set

Electroplating ntawm Beryllium Copper ntau lawm nto

Cov duab zoo nkauj ntawm cov khoom siv electroplating



Environmental Requirements rau cov khoom

Peb cov khoom BeCu ua tau raws li qhov yuav tsum tau ua ntawm SGS daim ntawv qhia, ROHS daim ntawv qhia, REACH, Halogen-dawb (HF) daim ntawv qhia, thiab lwm yam.



Peb lub tuam txhab muaj cov khoom ua tiav cov khoom kuaj xyuas kom ntseeg tau tias peb tuaj yeem muab cov khoom zoo thiab txhim khu kev qha. Thaum cov khoom raug xa tawm, peb tuaj yeem muab cov ntawv qhia tag nrho ntawm cov ntawv xeem, thiab qee cov khoom siv tau pom hauv daim duab hauv qab no:







Cov lus nug thiab cov yuam sij ntawm fingerstock thiab gaskets kev yuav khoom:

Q1: Dab tsi yog EMI tooj liab ntiv tes gasket?

A1: EMI tooj liab ntiv tes gasket yog ib qho khoom siv rau kev cuam tshuam hluav taws xob (EMI) tiv thaiv hauv hluav taws xob thiab hluav taws xob. Nws feem ntau yog ua los ntawm cov khoom siv tooj liab hloov tau thiab muaj cov ntiv tes zoo li qhov projections raws nws qhov ntev. Thaum compressed ntawm mating nto, cov ntiv tes tsim ntau cov ntsiab lus sib cuag, tsim kom muaj kev sib txuas hluav taws xob txhim khu kev qha thiab muab kev tiv thaiv EMI zoo.



Q2: EMI tooj liab ntiv tes gasket ua haujlwm li cas?

A2: EMI tooj liab ntiv tes gasket ua haujlwm los ntawm kev tsim cov khoom siv hluav taws xob ntawm ob qhov chaw sib txuas, xws li lub qhov rooj thiab lub hau. Thaum compressed, cov ntiv tes ntawm lub gasket siv lub zog uas ua kom muaj kev sib cuag hluav taws xob tas li thiab ua rau muaj kev cuam tshuam rau hluav taws xob hluav taws xob. Qhov no pab muaj EMI emissions nyob rau hauv lub enclosure, tiv thaiv kev cuam tshuam nrog lwm yam khoom siv thiab tiv thaiv rhiab electronics los ntawm sab nraud EMI qhov chaw.



Q3: Dab tsi yog qhov zoo ntawm kev siv EMI tooj liab ntiv tes gaskets?

A3: EMI tooj liab ntiv tes gaskets muaj ntau yam zoo. Ua ntej, lawv muab EMI tiv thaiv kev ua tau zoo, txo qhov xau ntawm hluav taws xob hluav taws xob tsawg. Qhov thib ob, lawv qhov yooj yim tso cai rau lawv ua raws li qhov sib txawv ntawm qhov sib txawv, ua kom muaj kev sib khi nruj thiab ruaj ntseg. Tsis tas li ntawd, cov gaskets muaj qhov ua tau zoo dua qub thiab cov khoom siv rov qab los, txhais tau tias lawv tuaj yeem rov qab mus rau lawv qhov qub qub txawm tias tom qab rov ua dua compression thiab decompression cycles. Qhov no ua kom lawv lub neej ntev thiab ua haujlwm zoo ib yam.



Q4: Cov ntawv thov dab tsi yog EMI tooj liab ntiv tes gaskets haum rau?

A4: EMI tooj liab ntiv tes gaskets yog dav siv nyob rau hauv ntau yam lag luam thiab kev siv. Lawv feem ntau pom muaj nyob rau hauv hluav taws xob enclosures xws li computer chassis, khoom siv sib txuas lus, thiab tswj vaj huam sib luag. Lawv kuj tseem muaj nyob rau hauv aerospace thiab kev tiv thaiv systems, qhov twg EMI shielding yog ib qho tseem ceeb rau avionics, radars, thiab cov khoom siv tub rog. Tsis tas li ntawd, cov gaskets no tau siv rau hauv cov khoom siv kho mob, khoom siv hluav taws xob hauv tsheb, cov khoom siv sib txuas lus, thiab lwm yam, nyob qhov twg EMI yuav tsum muaj.



Q5: Kuv yuav xaiv qhov zoo EMI tooj liab ntiv tes gasket rau kuv daim ntawv thov li cas?

A5: Xaiv txoj cai EMI tooj liab ntiv tes gasket suav nrog kev xav txog yam xws li cov ntawv thov tshwj xeeb, qhov ntev thiab cov duab ntawm cov mating nto, thiab qib xav tau ntawm EMI tiv thaiv kev ua tau zoo. Nws raug nquahu kom sab laj nrog lub chaw tsim khoom gasket lossis tus neeg muag khoom uas tshwj xeeb hauv EMI shielding khoom.
