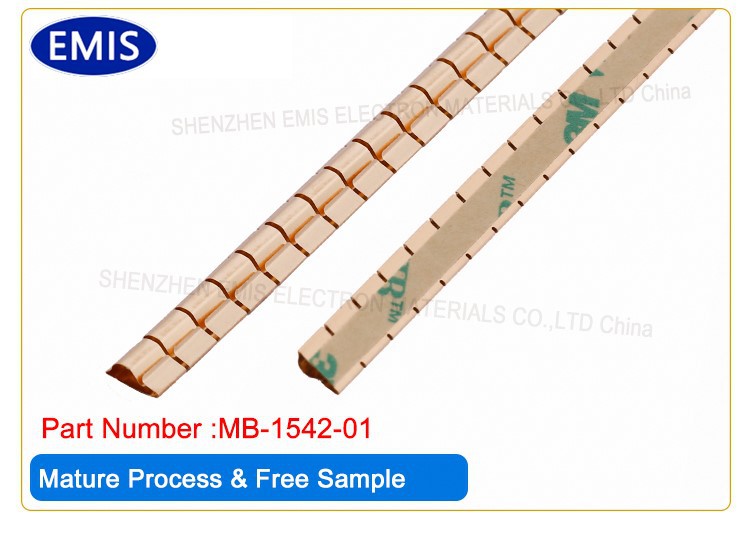

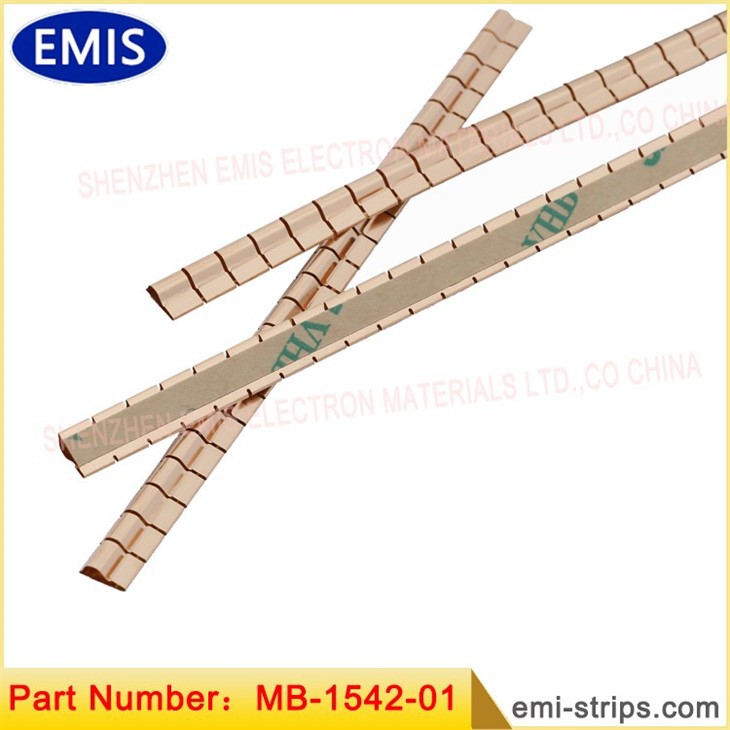

Txheem EMI Strips

Peb muab cov qauv EMI strips ntawm qhov ntev stability. Peb lub tuam txhab muaj ntau tshaj 300 tus qauv beryllium tooj liab springs uas tuaj yeem txiav mus rau qhov ntev sib txawv raws li qhov yuav tsum tau ua kom tau raws li cov neeg siv khoom xav tau.

Standard EMI strips muaj ntau yam nta thiab daim ntawv thov uas ua rau lawv haum rau electromagnetic shielding nyob rau hauv cov khoom siv hluav taws xob thiab khoom siv. Nov yog qee qhov nta thiab kev siv ntawm EMI strips:

Nta ntawm Standard EMI Strips:

Cov Khoom Siv Hluav Taws Xob: EMI strips feem ntau yog tsim los ntawm cov khoom siv hluav taws xob, xws li hlau (xws li, tooj liab, txhuas) lossis cov khoom siv hluav taws xob elastomers. Cov ntaub ntawv no muab cov hluav taws xob hluav taws xob siab thiab ua kom muaj kev tiv thaiv hluav taws xob zoo.

Flexibility: EMI strips feem ntau tsim los hloov tau, cia lawv ua raws li qhov sib txawv thiab cov duab. Qhov kev hloov pauv no ua kom yooj yim txhim kho nyob ib puag ncig cov npoo, seams, thiab lwm qhov chaw tsis muaj zog uas muaj hluav taws xob tuaj yeem tshwm sim.

Adhesive Backing: Ntau EMI strips tuaj nrog cov nplaum nplaum rov qab, ua rau lawv yooj yim siv thiab ruaj ntseg rau ntawm qhov chaw. Cov nplaum nplaum pab tswj kev sib cuag tsis tu ncua thiab muab kev sib txuas hluav taws xob txhim khu kev qha.

Compressibility: Qee cov EMI strips, zoo li cov ntiv tes gaskets lossis cov khoom ua npuas ncauj, muaj cov khoom siv compressible. Lawv tuaj yeem raug compressed ntawm mating nto, tsim kom muaj kev sib khi nruj thaum tswj hluav taws xob conductivity.

Shielding Effectiveness: Txheem EMI strips yog tsim los muab ib theem ntawm kev tiv thaiv zoo, ntsuas hauv decibels (dB). Kev tiv thaiv kev ua tau zoo txiav txim siab seb qhov strips thaiv zoo npaum li cas los yog attenuate electromagnetic nthwv dej thoob plaws ib qhov ntau zaus.

Kev siv ntawm Standard EMI Strips:

Electronic Enclosures: EMI strips feem ntau yog siv rau hauv cov khoom siv hluav taws xob, xws li cov rooj plaub hauv computer, cov txee, thiab cov vaj huam sib luag. Lawv raug siv raws li cov npoo, seams, thiab nkag mus rau cov ntsiab lus ntawm cov ntaub thaiv npog los tiv thaiv hluav taws xob hluav taws xob los ntawm kev khiav tawm thiab tiv thaiv cov khoom siv hluav taws xob los ntawm kev cuam tshuam sab nraud.

Connectors thiab Cable Assemblies: EMI strips pom cov ntawv thov hauv cov connectors thiab cable sib dhos. Lawv tau siv los tsim txoj hauv kev tiv thaiv rau cov cables thiab cov khoom sib txuas, txo cov electromagnetic emissions thiab txo qhov cuam tshuam ntawm sab nraud cuam tshuam.

Printed Circuit Boards (PCBs): EMI strips tuaj yeem ua haujlwm ntawm PCBs los muab kev tiv thaiv hauv cheeb tsam ib puag ncig rhiab Cheebtsam lossis circuits. Lawv pab tiv thaiv electromagnetic cross-hais lus thiab cuam tshuam ntawm cov kab uas nyob ib sab lossis cov khoom ntawm lub rooj tsavxwm.

Cov khoom siv sib txuas lus: EMI strips yog siv hauv kev sib txuas lus, xws li smartphones, ntsiav tshuaj, thiab wireless routers. Lawv pab txo cov hluav taws xob hluav taws xob tsawg los ntawm lub cuab yeej thiab txhim kho nws txoj kev tiv thaiv rau sab nraud electromagnetic cuam tshuam, ua kom ntseeg tau kev sib txuas lus zoo.

Cov Khoom Siv Kho Mob: EMI strips feem ntau siv rau hauv cov khoom siv kho mob, xws li cov cuab yeej kuaj mob, cov duab kos duab, thiab cov cuab yeej phais. Lawv pab tswj kev sib raug zoo ntawm electromagnetic compatibility (EMC), tiv thaiv kev cuam tshuam nrog lwm yam khoom siv kho mob, thiab ua kom muaj kev ua haujlwm raug thiab nyab xeeb.

Automotive Electronics: EMI strips yog ua hauj lwm hauv automotive electronics los daws cov teeb meem electromagnetic compatibility. Lawv pab txo cov hluav taws xob hluav taws xob los ntawm lub tshuab tsheb thiab tiv thaiv kev cuam tshuam sab nraud uas yuav cuam tshuam rau cov khoom siv hluav taws xob tseem ceeb, xws li cav tswj modules, infotainment systems, thiab sensors.

Nyob rau hauv niaj hnub no txoj kev ceev-paced technology toj roob hauv pes, electromagnetic cuam tshuam (EMI) yog ib qho kev txhawj xeeb tseem ceeb rau cov khoom siv hluav taws xob thiab khoom siv. Cov neeg tsim khoom siv zog los txo qhov cuam tshuam ntawm EMI, kom ntseeg tau tias lawv cov khoom ua haujlwm tsis zoo thaum ua raws li cov qauv kev cai nruj. Txhawm rau daws qhov kev sib tw no, peb lub tuam txhab txaus siab muab ntau yam ntawm cov qauv EMI strips ntawm qhov tshwj xeeb qhov ruaj khov. Ntxiv mus, nrog ntau hom ntau tshaj 300 tus qauv beryllium tooj liab springs, peb tuaj yeem ua tiav cov neeg siv khoom sib txawv los ntawm kev kho qhov ntev kom ua tiav. Cia peb delve rau hauv cov ntsiab lus ntawm peb cov khoom thiab yuav ua li cas lawv ua raws li cov kev xav tau tshwj xeeb ntawm peb cov neeg siv khoom muaj txiaj ntsig.

Unveiling Peb Dimensionally Stable EMI Sawb:

Ntawm peb lub tuam txhab, peb nkag siab qhov tseem ceeb ntawm kev tiv thaiv cov khoom siv hluav taws xob los ntawm kev cuam tshuam electromagnetic. Peb cov qauv EMI strips yog tsim los muab kev tiv thaiv zoo tshaj plaws tiv thaiv EMI thaum ua kom muaj kev ruaj ntseg zoo. Dimensional stability yog ib qho tseem ceeb heev vim nws lav kev ua haujlwm zoo ib yam nyob rau lub sijhawm, tsis txhob muaj kev cuam tshuam los yog deformation uas yuav cuam tshuam lub peev xwm tiv thaiv.

Peb cov EMI strips yog tsim los siv cov ntaub ntawv zoo thiab cov txuj ci tseem ceeb, kom ntseeg tau qhov ntev thiab txhim khu kev qha. Los ntawm kev siv thev naus laus zis thev naus laus zis, peb tsim cov strips uas tswj lawv cov duab thiab ua tau zoo, txawm tias nyob rau hauv cov kev xav tau. Qhov tshwj xeeb qhov kev ruaj ntseg no ua rau peb cov EMI strips zoo tagnrho rau ntau yam kev siv, los ntawm cov neeg siv khoom siv hluav taws xob mus rau cov khoom siv.

Customizability los ntawm Beryllium Copper Springs:

Ntxiv nrog rau peb qhov ruaj khov EMI strips, peb lub tuam txhab muaj kev sau ntau ntawm beryllium tooj liab springs. Nrog ntau tshaj 300 tus qauv caij nplooj ntoos hlav tsim muaj, peb muab kev sib tw tsis sib xws kom tau raws li kev xav tau ntawm peb cov neeg siv khoom. Cov springs no yog crafted los ntawm beryllium tooj liab, ib tug high-kev ua tau zoo alloy paub rau nws zoo heev mechanical zog thiab hluav taws xob conductivity.

Kev siv beryllium tooj liab springs tso cai rau kev hloov kho ntawm qhov ntev raws li cov cai tshwj xeeb. Qhov kev hloov pauv no ua kom ntseeg tau tias peb cov neeg siv khoom tuaj yeem nrhiav qhov zoo tshaj plaws haum rau lawv cov ntawv thov, tsis hais txog qhov project qhov xav tau tshwj xeeb. Los ntawm kev muab qhov ntev ntev, peb txhawb nqa peb cov neeg siv khoom kom ua tiav qhov kev ua tau zoo thiab kev ua haujlwm zoo thaum txo cov khoom pov tseg thiab cov nqi tsis tsim nyog.

Kev cog lus rau kev ua tau zoo thiab kev txaus siab rau cov neeg siv khoom:

Ntawm peb lub tuam txhab, peb muab qhov tseem ceeb ntawm qhov zoo thiab cov neeg siv khoom txaus siab tshaj txhua yam. Txhua yam khoom hauv peb cov khoom lag luam tau raug kuaj nruj thiab tshuaj xyuas kom ntseeg tau tias nws ua tau raws li cov qauv kev lag luam siab tshaj plaws. Los ntawm kev tswj hwm cov txheej txheem tswj xyuas kom zoo, peb lav tias peb cov EMI strips thiab beryllium tooj liab springs xa cov kev ua tau zoo thiab ua haujlwm ntev.

Tsis tas li ntawd, peb pab pawg kws tshaj lij yeej ib txwm npaj los pab cov neeg siv khoom nrhiav kev daws teeb meem zoo rau lawv cov kev xav tau tshwj xeeb. Los ntawm kev muab cov kev taw qhia txog kev muab cov lus pom zoo rau tus kheej, peb siv zog los tsim kev sib koom tes mus ntev raws li kev ntseeg siab thiab kev sib koom ua tiav. Peb txoj kev cog lus rau cov neeg siv khoom tshwj xeeb kom ntseeg tau tias cov neeg siv khoom tau txais kev txhawb nqa uas lawv xav tau thoob plaws hauv lawv txoj haujlwm lub neej.

Xaus:

Nyob rau hauv ib lub sij hawm dominated los ntawm advanced technology thiab interconnected pab kiag li lawm, mitigating electromagnetic cuam tshuam yog ib qho tseem ceeb rau kev tswj kom pom kev ua tau zoo. Peb lub tuam txhab muaj kev txaus siab los muab ntau yam ntawm cov qauv EMI strips nrog kev ruaj ntseg zoo kawg nkaus, muab kev tiv thaiv zoo rau cov khoom siv hluav taws xob. Tsis tas li ntawd, peb cov khoom lag luam dav dav ntawm beryllium tooj liab springs tso cai rau qhov ntev tuaj yeem hloov tau, txhawb nqa peb cov neeg siv khoom kom ua tau raws li lawv qhov project xav tau.

Raws li thev naus laus zis toj roob hauv pes txuas ntxiv mus, peb txoj kev cog lus rau kev ua tau zoo, kev tsim kho tshiab, thiab kev txaus siab ntawm cov neeg siv khoom tseem tsis tau hloov pauv. Los ntawm kev koom tes nrog peb lub tuam txhab, cov neeg siv khoom tau nkag mus rau cov kev daws teeb meem EMI uas ua kom ntseeg tau tias kev ua tau zoo, txhim kho cov khoom lag luam ntev, thiab ua tau raws li cov qauv kev cai. Nrog peb qhov ruaj khov EMI strips thiab ntau yam beryllium tooj liab springs, peb siv zog ua tus xa mus rau txhua qhov kev xav tau EMI shielding.

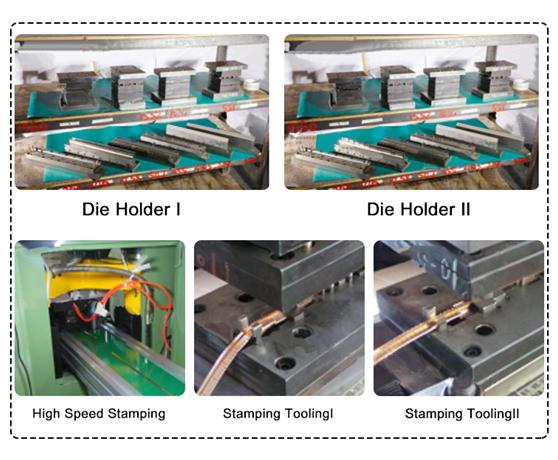

Manufacturing txheej txheem ntws ntawm BeCu Fingerstock

Qhov zoo ntawm lub tuam txhab

Ob tus kws tshaj lij Tooling designers ob leeg muaj ntau tshaj 10 Xyoo ntawm kev tsim kev paub.Peb tawg los ntawm cov txheej txheem nyuaj nyob rau hauv lub stamping teb nrog imported tooling ua cov cuab yeej thiab haib tooling manufacturing muaj peev xwm.Ntau tshaj 15 txheej pwm tuaj yeem ua tiav txhua lub hlis.

Kev xa khoom sai: 7 hnub rau cov qauv coj mus kuaj thiab 16 hnub rau cov pwm ntau lawm.

Extraordinarily Tooling lub neej: peb lub tuam txhab txais tshwj xeeb pwm cov ntaub ntawv rau ntau tshaj 100 lab lub sij hawm.

Peb Lub Tuam Txhab tsuas yog siv cov khoom siv raw los ntawm BrushWellman Co., Ltd ntawm Asmeskas.

Cov khoom siv loj:

Precision grinder: 4 poob lawm;

Milling tshuab: 3 teeb;

Drilling tshuab: 3 teeb;

Hlau-electrode txiav: 2 teeb;

millwrights: 1 set;

lwm: 5set

Electroplating ntawm Beryllium Copper ntau lawm nto

Cov duab zoo nkauj ntawm cov khoom siv electroplating

Cov lus nug thiab cov yuam sij ntawm fingerstock thiab gaskets kev yuav khoom:

Q1: Tus qauv EMI strips tau teeb tsa li cas?

A1: Standard EMI strips feem ntau yog siv rau cov npoo, seams, lossis qhov khoob ntawm cov khoom siv hluav taws xob, cov khoom sib txuas, lossis lwm qhov chaw tsis zoo. Ntau EMI strips tuaj nrog cov nplaum rov qab rau kev teeb tsa yooj yim, ua kom muaj kev sib cuag thiab hluav taws xob sib txuas.

Q2: Qhov kev tiv thaiv zoo ntawm cov qauv EMI strips yog dab tsi?

A2: Kev tiv thaiv kev ua tau zoo ntawm cov qauv EMI strips txawv nyob ntawm cov khoom xws li cov khoom, thickness, thiab tsim. Nws yog ntsuas nyob rau hauv decibels (dB) thiab qhia lub peev xwm ntawm cov strips rau attenuate electromagnetic tsis.

Q3: Cov ntawv thov twg yog cov qauv EMI strips siv hauv?

A3: Cov qauv EMI strips pom cov ntawv thov hauv ntau yam khoom siv hluav taws xob thiab khoom siv, suav nrog cov khoom siv hluav taws xob, cov khoom sib txuas, cov ntawv luam tawm Circuit Board (PCBs), cov khoom siv sib txuas lus, cov khoom siv kho mob, thiab cov khoom siv hluav taws xob hauv tsheb. Lawv pab tswj kev sib raug zoo ntawm electromagnetic, txo cov electromagnetic emissions, thiab tiv thaiv kev cuam tshuam sab nraud.

Q4: Cov qauv EMI puas tuaj yeem hloov kho?

A4: Yog lawm, tus qauv EMI strips tuaj yeem ua raws li cov kev cai tshwj xeeb. Lawv tuaj yeem raug kho kom haum rau cov duab tshwj xeeb lossis qhov ntau thiab tsawg, thiab lawv cov kev tiv thaiv kev tiv thaiv tuaj yeem ua kom zoo rau qhov tshwj xeeb ntau zaus lossis ib puag ncig.

Q5: Puas yog cov qauv EMI strips ua raws li cov qauv kev lag luam?

A5: Tus qauv EMI strips feem ntau tsim los ua raws li kev lag luam cov qauv thiab cov kev cai ntsig txog electromagnetic compatibility (EMC) thiab EMI shielding. Kev ua raws li cov qauv zoo li MIL-STD-461, FCC Part 15, lossis IEC 61000 ua kom ntseeg tau tias EMI strips ua tau raws li cov qauv kev ua tau zoo.
