Finger Stock Gasket



Peb muab cov ntiv tes tso rau ntawm EMI / RFI shielding.finger stock gaskets muaj kev tiv thaiv zoo heev, kev xaiv kev xaiv, yooj yim ntawm kev teeb tsa, ua haujlwm ntev, thiab siv tau zoo.

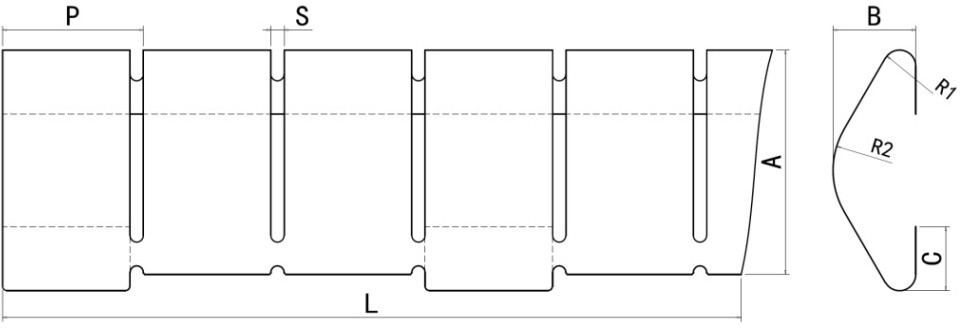

Tshooj Naj Npawb	T (mm)	A	B	C	R1	R2	P	S	Lmax	Nodes	Xim Xim

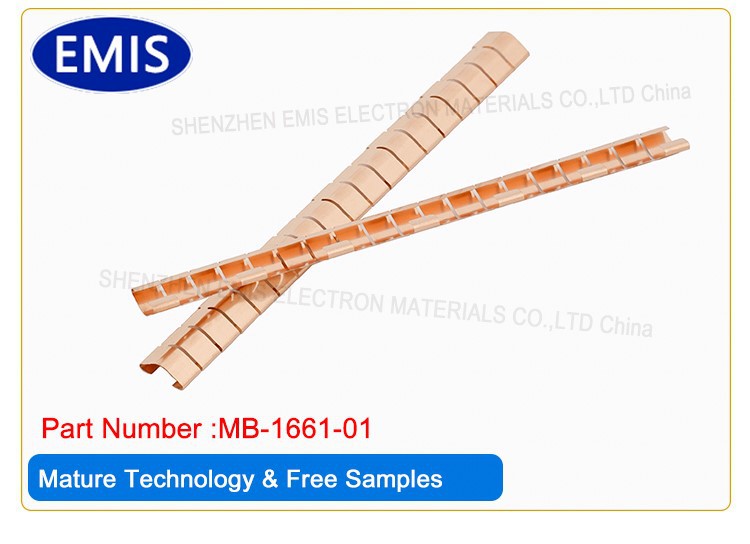

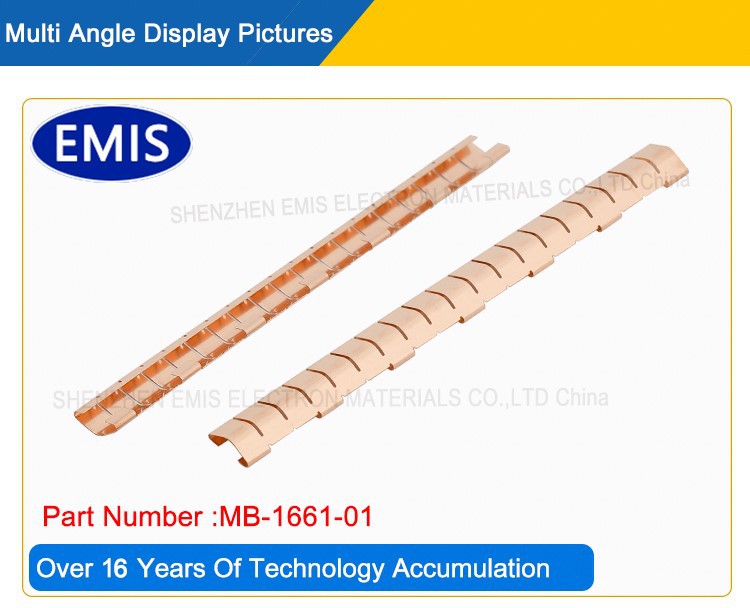

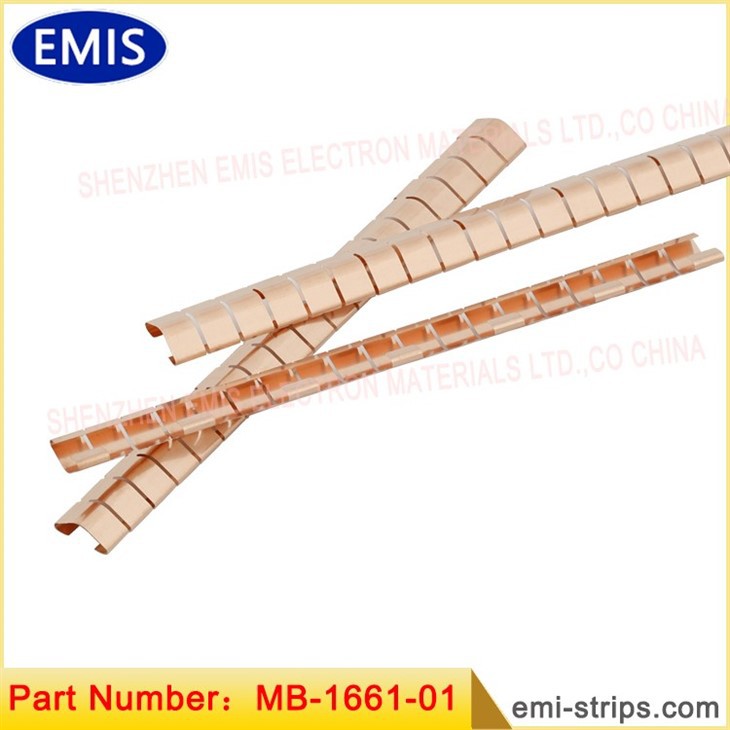

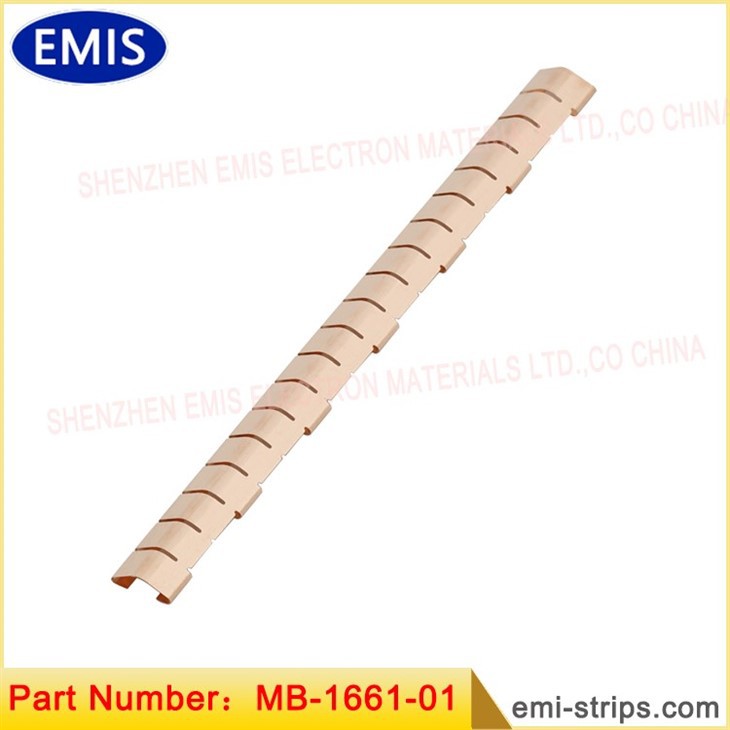

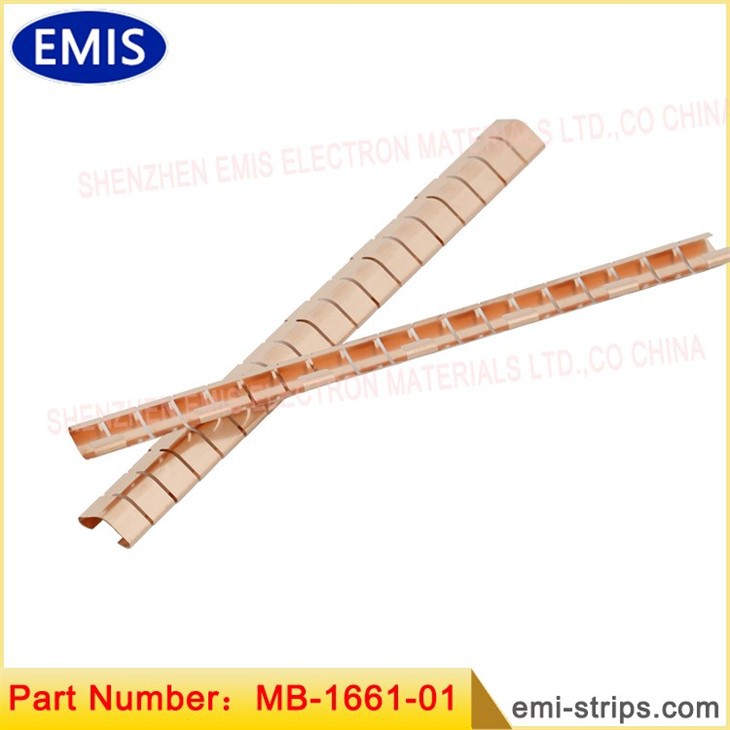

MB -1661-01	0.089	8.13	2.79	2.16	0.51	2.79	4.75	0.45	4 17,5mm	88	Bright tiav
MB-1661-0S/N	0.089	8.13	2.79	2.16	0.51	2.79	4.75	0.45	4 17,5mm	88	-0S: Tin / -0N: Nickel
MB -2661-01	0.05	8.13	2.79	2.16	0.51	2.79	4.75	0.45	4 17,5mm	88	Bright tiav
MB-2661-0S/N	0.05	8.13	2.79	2.16	0.51	2.79	4.75	0.45	4 17,5mm	88	-0S: Tin / -0N: Nickel
Re: Ntev tuaj yeem txiav rau hauv X nodes, X=1.2.3.4..., Qhov saum npoo kuj tuaj yeem plated nrog kub. Nyiaj & Zinc thiab lwm yam;



Lub luag haujlwm tseem ceeb ntawm cov ntiv tes ntiv tes gaskets yog muab cov khoom siv hluav taws xob uas thaiv lossis cuam tshuam cov hluav taws xob hluav taws xob thiab xov tooj cua zaus zog. Thaum ntsia nruab nrab ntawm qhov chaw sib txuas lossis qhov khoob, cov ntiv tes tsim kev sib txuas hluav taws xob txuas ntxiv, tiv thaiv kom tsis txhob xau lossis nkag ntawm EMI / RFI hluav taws xob.

Tus tsim ntawm cov ntiv tes cov khoom lag luam tso cai rau lawv ua raws li qhov tsis sib xws thiab kev hloov pauv hauv qhov chaw, kom ntseeg tau tias muaj kev ruaj ntseg thiab zoo ib yam. Lub caij nplooj ntoos hlav zoo li tus ntiv tes muab qhov zoo tshaj plaws compression thiab rov qab cov cuab yeej, tswj kev sib cuag tsis tu ncua txawm tias thaum muaj kev vibration, poob siab, lossis kub hloov. Qhov no resilience ua kom muaj kev tiv thaiv kev ua haujlwm txuas ntxiv mus rau lub neej ntawm lub cuab yeej.

Cov txiaj ntsig thiab qhov zoo:

Superior Shielding Performance: Finger stock gaskets muaj qhov tshwj xeeb EMI / RFI tiv thaiv kev ua tau zoo thoob plaws ntau zaus. Cov ntiv tes conductive muab ntau lub ntsiab lus sib cuag, txo qhov khoob thiab txoj hauv kev uas tuaj yeem cuam tshuam kev tiv thaiv kev ncaj ncees.

Versatility: Finger stock gaskets tuaj yeem ua raws li cov kev xav tau tshwj xeeb, nrog rau kev hloov pauv ntawm tus ntiv tes, qhov siab, qhov dav, thiab cov khoom siv. Qhov kev hloov pauv no tso cai rau lawv kom haum raws li kev tsim qauv sib txawv, suav nrog qhov tsis sib xws ntawm qhov chaw, qhov qhib qhov rooj, thiab cov txheej txheem sib dhos.

Kev yooj yim ntawm kev teeb tsa: Cov ntiv tes ntiv tes gaskets muaj nyob rau hauv ntau yam kev teeb tsa, suav nrog cov nplaum-rov qab thiab clip-on hom. Cov kev xaiv no yooj yim rau kev teeb tsa thiab ua kom yooj yim rau kev sib dhos ceev thiab txhim khu kev qha hauv ntau hom kev siv.

Longevity thiab Durability: Cov khoom siv hluav taws xob zoo siv hauv cov ntiv tes cov khoom lag luam kom ntseeg tau zoo heev corrosion kuj thiab mechanical stability. Lawv tuaj yeem tiv taus ib puag ncig hnyav, nrog rau qhov kub thiab txias, noo noo, thiab tshuaj lom neeg raug, yam tsis muaj kev cuam tshuam lawv cov kev tiv thaiv kev ua haujlwm.

Kev siv dav dav:

Finger stock gaskets pom cov ntawv thov thoob plaws ntau yam kev lag luam, suav nrog kev sib txuas lus, aerospace thiab tiv thaiv, khoom siv kho mob, kev tswj hwm kev lag luam, tsheb hluav taws xob, thiab lwm yam. Lawv yoog raws thiab kev ua tau zoo ua rau lawv tsim nyog rau kev tiv thaiv cov khoom siv hluav taws xob hauv ntau qhov chaw, ua kom pom kev ua tau zoo thiab kev ntseeg tau.





Electromagnetic cuam tshuam (EMI) thiab xov tooj cua zaus cuam tshuam (RFI) yog cov teeb meem tshwm sim hauv lub ntiaj teb niaj hnub thev naus laus zis. Cov emissions tswj tsis tau tuaj yeem cuam tshuam cov khoom siv hluav taws xob tsis zoo, ua rau muaj kev ua haujlwm tsis zoo, cov ntaub ntawv tsis raug cai, thiab txawm tias lub cev tsis ua haujlwm. Txhawm rau tiv thaiv cov teeb meem no, cov ntiv tes ntiv tes tau tshwm sim los ntawm kev txhim kho thiab ntau yam kev daws teeb meem, muab kev tiv thaiv zoo tshaj plaws, kev xaiv kho kom haum, yooj yim ntawm kev teeb tsa, kav ntev, thiab kev siv nyiaj zoo.

Kev Tiv Thaiv Kev Ua Tau Zoo: Ib qho Kev txhawj xeeb tseem ceeb

Thaum nws los txog rau EMI / RFI shielding, qhov ua tau zoo ntawm kev xaiv cov tshuaj yog qhov tseem ceeb. Finger stock gaskets, feem ntau yog ua los ntawm beryllium tooj liab, stainless hlau, los yog npib tsib xee nyiaj, muab zoo heev electromagnetic shielding peev xwm. Cov gaskets no tsim cov khoom siv hluav taws xob, muaj txiaj ntsig zoo thiab hloov pauv hluav taws xob hluav taws xob kom deb ntawm cov khoom rhiab heev. Lawv qhov muaj peev xwm ua tau zoo thiab cov khoom siv hluav taws xob ua rau cov ntiv tes tso rau hauv qhov kev xaiv zoo tshaj plaws rau ntau yam kev siv.

Customization Options rau Perfect Fit

Ib qho ntawm cov txiaj ntsig tseem ceeb ntawm cov ntiv tes cov khoom lag luam yog lawv qhov yooj yim hauv kev tsim thiab kho. Nrog rau ntau yam profiles, cov duab, thiab qhov ntau thiab tsawg, cov gaskets no tuaj yeem tsim kho kom haum rau cov ntawv thov tshwj xeeb. Txawm hais tias nws yog ib qho nyuaj PCB layout, complex enclosure tsim, los yog ib tug tshwj xeeb daim ntawv tseem ceeb, ntiv tes gaskets yuav raug tsim los xyuas kom meej meej thiab pom kev pab them nqi.

Yooj yim ntawm installation: Efficiency ntawm nws qhov zoo tshaj plaws

Qhov yooj yim ntawm kev teeb tsa yog qhov tseem ceeb thaum siv cov tshuaj tiv thaiv kev tiv thaiv. Finger stock gaskets yooj yim rau kev teeb tsa, txuag lub sijhawm thiab kev siv zog. Lawv tuaj yeem txuas tau yooj yim rau ntawm qhov chaw siv lub zog-rhiab nplaum rov qab lossis mechanically fastened nrog screws. Lawv qhov yooj yooj yim tso cai rau kev sib koom ua ke tsis muaj zog, txawm tias nyob hauv qhov chaw nruj lossis qhov tsis sib xws. Los ntawm kev txhim kho cov txheej txheem kev teeb tsa, cov ntiv tes cov khoom lag luam txhawb nqa tag nrho cov khoom tsim tau thiab kev ua haujlwm zoo.

Durability: Lub neej ntev rau kev tiv thaiv tsis muaj kev cuam tshuam

Hauv kev xav tau ib puag ncig uas cov khoom raug cuam tshuam rau kev vibrations, kub hloov pauv, thiab kev ntxhov siab ntawm lub cev, kev ua haujlwm ntev yog qhov tseem ceeb heev. Finger stock gaskets yog tsim los tiv thaiv cov teeb meem no. Cov ntaub ntawv siv, xws li beryllium tooj liab, muab tshwj xeeb tiv thaiv corrosion, oxidation, thiab txhua yam hnav. Qhov kev ua haujlwm ntev no ua kom muaj kev tiv thaiv ntev ntev, txo qhov kev xav tau ntawm kev saib xyuas ntau zaus lossis hloov pauv.

Nqi-Effectiveness: Tiv thaiv kev nqis peev

Hauv kev nrhiav cov kev daws teeb meem zoo EMI / RFI tiv thaiv, tus nqi yog qhov tseem ceeb. Finger stock gaskets muab qhov sib npaug zoo ntawm kev ua tau zoo thiab kev pheej yig. Lawv yog ib qho txiaj ntsig zoo rau lwm txoj hauv kev tiv thaiv kev tiv thaiv, xws li cov txheej txheem hluav taws xob lossis cov ntaub thaiv npog. Los ntawm kev xaiv cov khoom siv ntiv tes, cov koom haum tuaj yeem ua tiav qhov kev tiv thaiv zoo tshaj plaws yam tsis muaj ntau tshaj lawv cov kev txwv nyiaj txiag.

Xaus

Hauv kev nrhiav cov kev daws teeb meem zoo EMI / RFI tiv thaiv, cov ntiv tes cov khoom lag luam sawv tawm raws li kev xaiv ntau yam thiab muaj kev vam meej. Nrog rau lawv qhov tshwj xeeb tiv thaiv kev ua tau zoo, kev xaiv kho kom haum, yooj yim ntawm kev teeb tsa, kev ua haujlwm ntev, thiab kev siv nyiaj zoo, cov gaskets muaj cov kev daws teeb meem rau kev tiv thaiv cov khoom siv hluav taws xob rhiab heev. Los ntawm kev siv cov ntiv tes tso rau hauv gaskets, peb tuaj yeem ua kom muaj kev ua haujlwm zoo ntawm lawv cov tshuab, txhim khu kev ntseeg tau ntawm cov khoom.

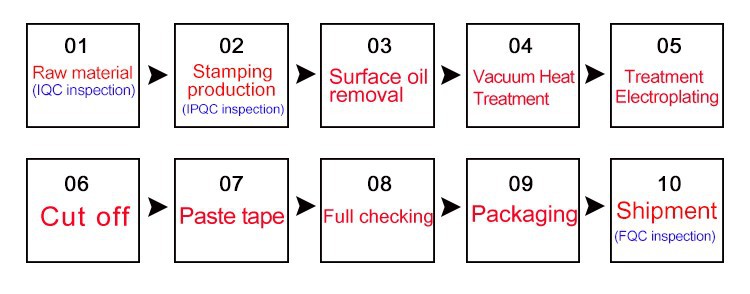

Kev tsim cov txheej txheem ntws ntawm BeCu Fingerstock





Qhov zoo ntawm lub tuam txhab

Ob tus kws tshaj lij Tooling designers ob leeg muaj ntau tshaj 10 Xyoo ntawm kev tsim kev paub.Peb tawg los ntawm cov txheej txheem nyuaj nyob rau hauv lub stamping teb nrog imported tooling ua cov cuab yeej thiab haib tooling manufacturing muaj peev xwm.Ntau tshaj 15 txheej pwm tuaj yeem ua tiav txhua lub hlis.

Kev xa khoom sai: 7 hnub rau cov qauv coj mus kuaj thiab 16 hnub rau cov pwm ntau lawm.

Extraordinarily Tooling lub neej: peb lub tuam txhab txais tshwj xeeb pwm cov ntaub ntawv rau ntau tshaj 100 lab lub sij hawm.

Peb Lub Tuam Txhab tsuas yog siv cov khoom siv raw los ntawm BrushWellman Co., Ltd ntawm Asmeskas.





Precision grinder: 4 poob lawm;

Milling tshuab: 3 teeb;

Drilling tshuab: 3 teeb;

Hlau-electrode txiav: 2 teeb;

millwrights: 1 set;

lwm: 5set





Environmental Requirements rau cov khoom

Peb cov khoom BeCu ua tau raws li qhov yuav tsum tau ua ntawm SGS daim ntawv qhia, ROHS daim ntawv qhia, REACH, Halogen-dawb (HF) daim ntawv qhia, thiab lwm yam.









Cov lus nug thiab cov yuam sij ntawm fingerstock thiab gaskets kev yuav khoom:

Q1: Yuav ua li cas thiaj ua haujlwm ntawm tus ntiv tes?

A1: Finger stock gaskets muaj ntau cov ntiv tes hlau los yog cov springs uas feem ntau yog ua los ntawm beryllium tooj liab lossis stainless hlau. Cov ntiv tes no yog compressed nruab nrab ntawm ob qhov chaw los tsim ib txoj kev conductive, zoo sealing lub enclosure thiab tiv thaiv electromagnetic tawg los ntawm kev nkag los yog tawm.



Q2: Dab tsi yog qhov zoo ntawm kev siv cov ntiv tes ntiv tes gaskets?

A2: Cov khoom siv ntiv tes muaj ntau qhov zoo, suav nrog cov khoom siv hluav taws xob zoo heev, kev tiv thaiv kev ua haujlwm siab, kev tiv thaiv ib puag ncig xws li qhov kub thiab txias, kev ua haujlwm ntev, thiab muaj peev xwm ua kom haum raws qhov sib txawv qhov sib txawv thiab qhov tsis sib xws.



Q3: Puas muaj qee qhov kev txwv lossis kev txiav txim siab thaum siv cov ntiv tes ntiv tes?

A3: Thaum cov ntiv tes tso rau hauv cov khoom siv tiv thaiv kev ua tau zoo, nws yog ib qho tseem ceeb los xyuas kom meej lub zog compression thiab kev sib cuag ntawm cov ntiv tes thiab mating nto. Tsis tas li ntawd, cov ntiv tes tuaj yeem ua rau qaug zog thaum lub sijhawm, yog li kev tshuaj xyuas ib ntus thiab hloov pauv yuav tsim nyog hauv daim ntawv thov hnav siab. Kev xaiv cov khoom yuav tsum tau xav txog tej yam kev phom sij, xws li raug beryllium nyob rau hauv cov ntaub ntawv ntawm beryllium tooj liab ntiv tes.



Q4: Puas tuaj yeem rov siv dua?

A4: Cov khoom siv ntiv tes tuaj yeem rov qab siv tau yog tias lawv tseem nyob hauv qhov chaw zoo thiab tuav lawv cov qauv qub thiab muaj zog. Txawm li cas los xij, rov qab compression thiab decompression cycles tuaj yeem cuam tshuam rau lawv qhov kev ua tau zoo thiab ua haujlwm ntev, yog li nws tau pom zoo los ntsuas lawv cov txiaj ntsig ua ntej rov siv dua.



Q5: Yuav ua li cas cov ntiv tes sib piv rau lwm hom EMI tiv thaiv kev daws teeb meem?

A5: Cov khoom siv ntiv tes ntiv tes muab cov txiaj ntsig zoo dua li lwm txoj hauv kev xws li cov khoom siv hluav taws xob lossis cov khoom siv hluav taws xob vim lawv muaj ntau yam, yooj yim ntawm kev teeb tsa, thiab muaj peev xwm ua kom haum raws qhov sib txawv thiab qhov tsis sib xws. Txawm li cas los xij, kev xaiv ntawm EMI thaiv kev daws teeb meem yog nyob ntawm cov cai tshwj xeeb, thiab qee zaum, kev sib xyaw ua ke ntawm cov txheej txheem sib txawv yuav raug siv los ua kom pom kev tiv thaiv zoo.



Cim npe nrov: Tuam Tshoj ntiv tes Tshuag Gasket manufacturers, lwm tus neeg, Hoobkas
