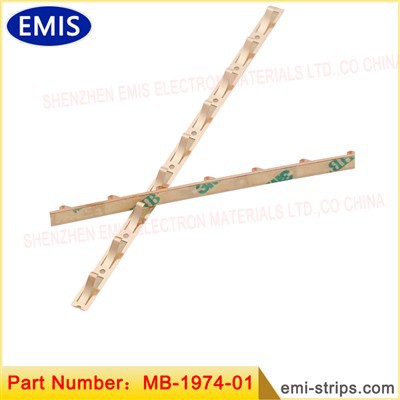

EMI Shielding Gaskets



Peb muab emi shielding gaskets rau chassis thiab txee. Los ntawm kev koom ua ke EMI shielding gaskets rau hauv chassis thiab cov khoom, cov tuam ntxhab tuaj yeem txhim kho tag nrho cov khoom siv hluav taws xob sib raug zoo ntawm lawv cov tshuab hluav taws xob, ua kom muaj kev ua haujlwm zoo, txo qhov kev pheej hmoo ntawm kev cuam tshuam txog teeb meem.







Tshooj Naj Npawb	T (mm)	A	B	C	R1	R2	P	S	Lmax	Nodes	Xim Xim
MB -1449-01	0.08	5.0	2.3	1.4	0.4	1.1	3.4	0.45	4 18mm	123	Bright tiav
MB-1449-0S/N	0.08	5.0	2.3	1.4	0.4	1.1	3.4	0.45	4 18mm	123	-0S: Tin / -0N: Nickel
MB -2449-01	0.05	5.0	2.3	1.4	0.4	1.1	3.4	0.45	4 18mm	123	Bright tiav
MB-2449-0S/N	0.05	5.0	2.3	1.4	0.4	1.1	3.4	0.45	4 18mm	123	-0S: Tin / -0N: Nickel
Re: Ntev tuaj yeem txiav rau hauv X nodes, X=1.2.3.4..., Qhov saum npoo kuj tuaj yeem plated nrog kub. Nyiaj & Zinc thiab lwm yam;







EMI Shielding Gasket Nta:

Conductive Materials: EMI shielding gaskets yog tsim los ntawm cov khoom siv hluav taws xob xws li hlau, metalized elastomers, conductive fabrics, lossis conductive foams. Cov ntaub ntawv no muab cov khoom siv hluav taws xob tsim nyog rau kev tiv thaiv EMI zoo.

Compression thiab Flexibility: EMI shielding gaskets yog tsim los ua compressible thiab hloov tau. Lawv tuaj yeem raug compressed ntawm mating nto, ua kom muaj kev ruaj ntseg thiab zoo sib xws los thaiv EMI to.

Environmental Sealing: Ntau EMI shielding gaskets kuj muaj ib puag ncig sealing zog. Lawv tuaj yeem muab kev tiv thaiv plua plav, ya raws, thiab lwm yam khoom paug ib puag ncig, ntxiv rau lawv lub peev xwm tiv thaiv EMI.

Kev Tiv Thaiv Kev Tiv Thaiv: EMI shielding gaskets yog tsim los muab cov qib siab ntawm kev tiv thaiv kev ua tau zoo, txo qis kev sib kis ntawm electromagnetic tsis thiab txo qis EMI emissions. Kev tiv thaiv kev ua tau zoo yog feem ntau ntsuas hauv decibels (dB) thiab nyob ntawm cov khoom xws li cov khoom siv gasket, thickness, thiab tsim.

Ib qho yooj yim installation: EMI shielding gaskets feem ntau muaj nyob rau hauv ntau yam ntaub ntawv, xws li tapes, nplooj ntawv, los yog tuag-cut shapes, ua rau lawv yooj yim rau nruab los yog integrate rau hauv txawv electronic devices or systems.

Daim ntawv thov EMI Shielding Gasket:

Electronics thiab Telecommunications: EMI shielding gaskets yog siv dav hauv cov khoom siv hluav taws xob thiab cov khoom siv sib txuas lus los tiv thaiv kev cuam tshuam ntawm cov khoom siv thiab ua kom ntseeg tau kev ua haujlwm. Lawv feem ntau pom muaj nyob rau hauv xov tooj ntawm tes, khoos phis tawj, routers, keyboards, thiab lwm yam khoom siv hluav taws xob.

Cov Khoom Siv Kho Mob: Cov cuab yeej kho mob feem ntau muaj cov khoom siv hluav taws xob uas xav tau kev tiv thaiv los ntawm EMI. RFI shielded ntiv tes yog siv rau hauv cov khoom siv xws li MRI tshuab, pacemakers, defibrillators, thiab cov cuab yeej tshuaj xyuas.

Automotive Electronics: Nrog rau qhov nyuaj ntawm cov khoom siv hluav taws xob hauv tsheb, EMI shielding gaskets ua lub luag haujlwm tseem ceeb hauv kev tiv thaiv kev cuam tshuam thiab tswj kev ua haujlwm ntawm cov tshuab hluav taws xob. Lawv siv nyob rau hauv navigation systems, infotainment systems, engine tswj units (ECUs), thiab lwm yam automotive electronics.

Aerospace thiab Defense: EMI shielding gaskets yog qhov tseem ceeb hauv kev siv dav hlau thiab kev tiv thaiv kom ntseeg tau tias kev ua haujlwm zoo ntawm cov tshuab hluav taws xob, avionics, thiab cov khoom siv sib txuas lus. Lawv siv nyob rau hauv radar systems, satellite kev sib txuas lus systems, aircraft electronics, thiab tub rog tsheb.

Cov Khoom Siv Hauv Kev Lag Luam: Kev tswj hwm kev lag luam, cov neeg hlau, cov khoom siv hluav taws xob, thiab lwm yam khoom siv hluav taws xob tuaj yeem tau txais txiaj ntsig los ntawm EMI shielding gaskets kom txo tau qhov cuam tshuam ntawm electromagnetic cuam tshuam thiab tswj kev lag luam txhim khu kev qha hauv qhov chaw hnyav.

Consumer Electronics: EMI shielding gaskets muaj nyob rau hauv ntau yam khoom siv hluav taws xob xws li TVs, gaming consoles, khoom siv suab, thiab cov khoom siv kom txo qis kev cuam tshuam thiab txhim kho kev ua haujlwm.

Cov Chaw Cov Ntaub Ntawv: Hauv cov chaw cov ntaub ntawv thiab cov chav neeg rau zaub mov, EMI shielding gaskets yog siv los tiv thaiv cov cuab yeej rhiab los ntawm electromagnetic cuam tshuam thiab tswj cov ntaub ntawv kev ncaj ncees thiab kev ntseeg tau.





Nyob rau hauv lub ntiaj teb niaj hnub thev naus laus zis niaj hnub no, cov tshuab hluav taws xob hauv hluav taws xob tau dhau los ua qhov sib txawv thiab muaj tswv yim. Raws li cov khoom siv hluav taws xob txuas ntxiv mus, qhov xav tau los daws qhov cuam tshuam ntawm electromagnetic cuam tshuam (EMI) ua qhov tseem ceeb dua. EMI tuaj yeem cuam tshuam kev ua haujlwm ib txwm ntawm cov tshuab hluav taws xob, ua rau muaj teeb meem kev ua haujlwm thiab muaj feem cuam tshuam rau lawv txoj kev ntseeg siab. Txhawm rau txo qhov kev pheej hmoo no, peb tuaj yeem tso siab rau EMI shielding gaskets rau chassis thiab txee. Cov gaskets no muab cov kev daws teeb meem los txhim kho electromagnetic compatibility thiab ua kom pom kev ua haujlwm zoo.

Nkag siab EMI thiab nws qhov cuam tshuam: Electromagnetic cuam tshuam (EMI) yog hais txog qhov tsis xav tau electromagnetic emissions lossis teeb liab uas tuaj yeem cuam tshuam rau kev ua haujlwm ntawm cov khoom siv hluav taws xob lossis cov tshuab. Cov emissions no tuaj yeem tawm los ntawm ntau qhov chaw, xws li cov kab hluav taws xob, xov tooj cua tsis muaj zog, lossis cov khoom siv hluav taws xob nyob ze. Thaum EMI infiltrates rhiab heev hauv tshuab hluav taws xob, nws tuaj yeem ua rau lub teeb liab distortion, cov ntaub ntawv kev noj nyiaj txiag, lossis txawm tias ua tiav qhov system tsis ua haujlwm. Cov teeb meem ntsig txog EMI tuaj yeem ua rau muaj kev poob nyiaj txiag tseem ceeb, cuam tshuam txog kev nyab xeeb, thiab txo qis cov neeg siv kev paub.

Lub luag hauj lwm ntawm EMI Shielding Gaskets: EMI shielding gaskets ua raws li kev thaiv ntawm cov khoom siv hluav taws xob thiab lawv qhov chaw nyob ib puag ncig. Los ntawm kev sib xyaw cov gaskets rau hauv lub chassis thiab cov khoom siv hluav taws xob, cov tuam txhab tsim khoom tuaj yeem muaj thiab tswj EMI zoo. Lub luag haujlwm tseem ceeb ntawm cov gaskets no yog muab cov khoom siv hluav taws xob lossis cov hlau nplaum sib nqus uas ua rau qis lossis cuam tshuam EMI cov cim, tiv thaiv lawv nkag mus rau hauv lossis emanation ntawm lub cev.

Xaiv txoj cai EMI Shielding Gaskets: Xaiv qhov tsim nyog EMI shielding gaskets yog qhov tseem ceeb rau kev ua tiav cov txiaj ntsig zoo. Cov neeg tsim khoom yuav tsum xav txog yam xws li qib ntawm kev tiv thaiv kev ua tau zoo uas yuav tsum tau muaj, cov khoom siv sib haum nrog cov ntawv thov, cov khoom siv kho tshuab, thiab kev xav txog ib puag ncig.

Xaus: EMI shielding gaskets rau chassis thiab cov khoom muaj kev txhim khu kev qha thiab muaj txiaj ntsig zoo los txhim kho electromagnetic compatibility hauv cov tshuab hluav taws xob. Los ntawm kev ua kom zoo los yog xav txog qhov tsis xav tau electromagnetic emissions, cov gaskets no txo ​​qhov kev pheej hmoo ntawm kev cuam tshuam txog teeb meem, ua kom muaj kev ua haujlwm zoo thiab kev ntseeg tau. Cov neeg tsim khoom thoob plaws hauv kev lag luam tuaj yeem tau txais txiaj ntsig los ntawm kev sib koom ua ke EMI shielding gaskets rau hauv lawv cov qauv tsim, vim tias lawv tsis tsuas yog tiv thaiv lawv cov tshuab hluav taws xob nkaus xwb tab sis kuj ua raws li cov qauv kev cai thiab muab kev paub zoo rau cov neeg siv.





Kev tsim cov txheej txheem ntws ntawm BeCu Fingerstock





Electroplating ntawm Beryllium Copper ntau lawm nto

Cov duab zoo nkauj ntawm cov khoom siv electroplating











Cov lus nug thiab cov yuam sij ntawm fingerstock thiab gaskets kev yuav khoom:

Q1: Dab tsi yog EMI shielding gasket?

A1: EMI shielding gasket yog ib qho khoom siv tshwj xeeb siv los muab kev cuam tshuam hluav taws xob (EMI) tiv thaiv hauv cov khoom siv hluav taws xob lossis cov tshuab. Nws feem ntau yog ua los ntawm cov khoom siv hluav taws xob, xws li hlau lossis hlau elastomers, thiab yog tsim los kaw qhov khoob ntawm ob qhov chaw sib txuas kom tiv thaiv kom tsis txhob tawg ntawm hluav taws xob hluav taws xob.



Q2: Lub hom phiaj ntawm EMI shielding gasket yog dab tsi?

A2: Lub hom phiaj tseem ceeb ntawm EMI shielding gasket yog los thaiv lossis hloov hluav taws xob cuam tshuam (EMI) cov cim los ntawm kev nkag lossis tawm ntawm cov khoom siv hluav taws xob lossis qhov system. Nws pab tsim kom muaj kev sib khi ntawm cov khoom sib txuas, kom ntseeg tau tias cov khoom siv hluav taws xob muaj kev tiv thaiv los ntawm cov khoom siv EMI sab nraud thiab tiv thaiv cov hluav taws xob hauv hluav taws xob los ntawm kev cuam tshuam nrog lwm cov khoom.



Q3: Qhov twg yog EMI shielding gaskets nquag siv?

A3: EMI shielding gaskets pom cov ntawv thov hauv ntau yam khoom siv hluav taws xob thiab tshuab, suav nrog tab sis tsis txwv rau:

Cov xov tooj ntawm tes thiab smartphones

Computers, laptops, thiab ntsiav tshuaj

Cov cuab yeej kho mob

Aerospace thiab aviation systems

Automotive electronics

Cov khoom siv sib txuas lus

Industrial tswj systems

Tub rog thiab tiv thaiv hluav taws xob



Q4: EMI shielding gaskets ua haujlwm li cas?

A4: EMI shielding gaskets ua haujlwm los ntawm kev tsim txoj hauv kev ntawm cov mating nto, uas pab cuam tshuam lossis thaiv cov hluav taws xob tsis zoo. Thaum lub gasket yog compressed ntawm ob yam khoom, nws tsim ib tug nruam conductive foob, tsim ib tug barrier tiv thaiv EMI. Cov khoom siv hluav taws xob nyob rau hauv lub gasket absorbs los yog cuam tshuam cov hluav taws xob hluav taws xob, tiv thaiv nws los ntawm kev hla los yog khiav.
