Ib qhov Slot BeCu ntiv tes Tshuag

Ib qhov BeCu ntiv tes Tshuag tuaj yeem siv tau hauv EMI shielding gaskets lossis ESD hu. Qee cov qauv kuj muaj nyob rau hauv coils nrog ntev ntawm 7.6m. Cov khoom tuaj yeem compressed 100000 zaug yam tsis muaj deformation.

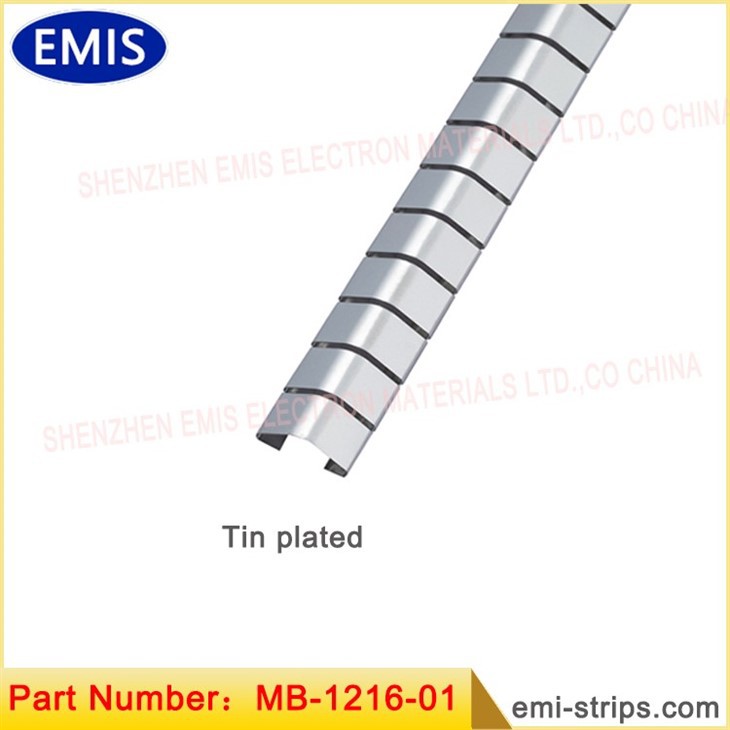

Lus Cim: MB-1116-01 Thickness=0.089mm;MB-1216-01 Thickness=0.05mm, lwm qhov ntau thiab tsawg tib yam.

Tus naj npawb ntiv tes ntawm cov ntiv tes thiab cov gasket hom: MB-1/2XXX-AA

Nco tseg:

M: sawv cev raws li Hlau; B: sawv cev li Beryllium tooj liab;

1: sawv cev raws li ib txwm thickness ntawm raw khoom;

2: sawv cev raws li thinner thickness los yog ultra mos txheej txheem;

XXX: sawv cev raws li qhov tshwj xeeb No;

AA sib npaug rau {{0}}: cov khoom sib dhos; 01: ci tiav; 0N: plating Ni;

{{0}}S: plating Tin; 0Z: plating zinc; 0G: plating kub; 0A: plating Ag.

MS (P) -XXXX - AA

Lus Cim: M: sawv cev li Hlau; S: sawv cev raws li SUS, lwm yam khoom raws li saum toj no.

Qhov tsawg kawg nkaus tus nqi fabrication.

Cov txheej txheem kev teeb tsa ntawm ib qho BeCu ntiv tes Tshuag thiab gaskets: Qhov mounted qhov chaw tau yooj yim ntsia tau siv cov qhov uas yuav tsum tau muaj ob txoj kev txav mus los. Tsuas yog nruab ib feem rau hauv ib lub qhov thiab snap nws mus rau hauv lub qhov thib ob lossis dhau ntawm ntug ntawm tus ncej; Xws li:MB-1216-01/1116-01/1136-01 thiab lwm yam.

Zoo tagnrho rau grounding thiab shielding nyob rau hauv cov nram qab no electronic enclosure daim ntaub ntawv.

Pem hauv ntej vaj huam sib luag tuav - Chassis npog.

Plug-in units - Backplanes.

Subrack assemblies.

Qee cov qauv kuj muaj nyob rau hauv coils nrog ntev ntawm 7.6m.

Hauv thaj tsam ntawm hluav taws xob thiab kev sib txuas lus, electromagnetic cuam tshuam (EMI) thiab electrostatic tawm (ESD) ua rau muaj teeb meem loj. Raws li cov khoom siv hluav taws xob ua kom muaj kev sib txuas ntau dua thiab sib cuam tshuam, kev xav tau kev tiv thaiv EMI thiab ESD tiv thaiv tau dhau los ua qhov tseem ceeb. Ib qho kev daws teeb meem uas tau txais kev lees paub rau nws qhov kev ua tau zoo thiab kev ntseeg tau yog Ib Qhov Slot BeCu Finger Tshuag.

Qhov Ib Qhov BeCu Finger Stock yog ib qho khoom siv tau yooj yim thiab ua haujlwm tau los ntawm beryllium tooj liab (BeCu) alloy, muaj npe nrov rau nws cov hluav taws xob zoo heev thiab cov khoom siv kho tshuab. Cov ntiv tes no yog tsim los muab kev ruaj ntseg EMI shielding thiab ESD tiv tauj hauv ntau daim ntawv thov, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau kev lag luam xws li kev sib txuas lus, aerospace, automotive, thiab kev kho mob hluav taws xob.

Ib qho ntawm cov yam ntxwv tseem ceeb ntawm Single Slot BeCu Finger Stock yog nws qhov hloov tau. Nws tuaj yeem siv rau hauv EMI shielding gaskets, uas feem ntau ua haujlwm los tiv thaiv cov hluav taws xob hluav taws xob los ntawm cov khoom siv hluav taws xob. Cov gaskets no tsim ib qho kev cuam tshuam uas nyob ib puag ncig cov khoom rhiab, txo qhov kev pheej hmoo ntawm kev cuam tshuam los ntawm cov khoom siv hluav taws xob sab nraud thiab ua kom cov khoom siv hluav taws xob ua haujlwm zoo.

Tsis tas li ntawd, ib qho Slot BeCu Finger Stock kuj tseem siv los ua ESD tiv tauj, uas pab cuam tshuam cov hluav taws xob hluav taws xob tawm ntawm qhov hluav taws xob hluav taws xob. Electrostatic tawm tuaj yeem ua rau muaj kev puas tsuaj rau cov khoom siv hluav taws xob tsis zoo, ua rau muaj kev ua haujlwm tsis zoo lossis txawm tias ua tiav cov cuab yeej tsis ua haujlwm. Los ntawm kev ua haujlwm cov ntiv tes ua ib qho kev sib cuag ESD, cov tuam txhab lag luam tuaj yeem tiv thaiv lawv cov khoom tiv thaiv ESD cov xwm txheej, ua kom lawv lub neej ntev thiab kev ntseeg tau.

Ib qho Slot BeCu Finger Stock tuaj nyob rau hauv ntau hom ntawv thiab teeb tsa, nyob ntawm seb cov ntawv thov tshwj xeeb. Qee cov qauv muaj nyob rau hauv coils nrog qhov ntev ntawm 7.6 meters, tso cai rau kev yooj yim customization thiab installation nyob rau hauv txawv hluav taws xob enclosures. Qhov kev hloov pauv no ua rau cov kws tshaj lij thiab cov neeg tsim qauv hloov kho cov ntiv tes kom haum rau ntau yam duab thiab qhov ntau thiab tsawg, ua kom pom kev zoo EMI shielding thiab ESD tiv thaiv.

Ib qho ntawm qhov zoo tshaj plaws ntawm Ib Qhov Slot BeCu Finger Stock yog nws qhov tshwj xeeb ua haujlwm ntev. Txawm hais tias nws hloov tau yooj yim, cov ntiv tes Tshuag muaj peev xwm tiv taus compression mus txog 100, 000 zaug yam tsis muaj deformation. Cov cuab yeej no yog qhov tseem ceeb hauv cov ntawv thov uas rov qhib thiab kaw ntawm cov khoom siv hluav taws xob tshwm sim, xws li hauv cov khoom siv nrog cov roj teeb tshem tau lossis cov khoom siv nkag. Lub neej ntev thiab kev cia siab ntawm cov ntiv tes cov khoom ua rau muaj kev ua haujlwm tag nrho thiab kev ua neej nyob ntawm cov khoom siv hluav taws xob.

Txhawm rau kom ua tau zoo thiab txhim khu kev qha, nws yog ib qho tseem ceeb uas yuav tsum ua raws li cov qauv kev lag luam thiab cov lus qhia. Ib qho Slot BeCu Finger Tshuag ua raws li ntau yam qauv, suav nrog cov uas cuam tshuam nrog EMI tiv thaiv kev ua tau zoo thiab cov kev cai ib puag ncig. Txais tos kom customize qhov kev xaiv.

Kev tsim cov txheej txheem ntws ntawm BeCu Fingerstock

Peb Lub Tuam Txhab tsuas yog siv cov khoom siv raw los ntawm BrushWellman Co., Ltd ntawm Asmeskas.

Chemical Component

Ua ----------------1.8 feem pua ​​-2. feem pua ​​(high beryllium series)

Cobalt plus Nickel ----------0.20 feem pua ​​(tsawg kawg)

Cobalt ntxiv rau Nickel thiab Hlau ----- 0.60 feem pua ​​(tsawg kawg)

tooj liab--------------------qhov seem

Lub cev khoom

Hluav taws xob conductivity (IACS) ---22-25 feem pua

Elasticity modulus (psi) --- 18.5 * 10⁶

Acuum kev kho cua sov tuaj yeem ua rau 1/4h lossis 1/2h hardness ntawm BeCu raw cov ntaub ntawv nce mus rau ntau tshaj 373HV hardness, thiaj li ua kom cov elasticity yuav tsum tau ntawm BeCu cov khoom.

qhov tseem ceeb parameter:

Lub tshuab nqus tsev degree:<1Pa

Kub: 600 F

Soak Sijhawm: 2 teev

Kev tiv thaiv roj: Nitrogen

Purity: 99.9999 feem pua

IEnvironmental Requirements rau cov khoom

Peb cov khoom ua tau raws li qhov yuav tsum tau ua ntawm SGS daim ntawv qhia, ROHS daim ntawv qhia, REACH, Halogen-dawb (HF) daim ntawv qhia, thiab lwm yam.

Cov lus nug thiab cov lus teb ntawm cov txheej txheem tsim khoom thiab thev naus laus zis

Q: 1 Yuav ua li cas yog tias muaj qee qhov teeb meem ntawm cov neeg siv khoom kos duab txog ntau lawm?

A1: Peb lub tuam txhab yuav muab cov lus qhia hloov kho thiab tom qab ntawd xa mus rau cov neeg siv khoom kom paub meej ntxiv, sib tham txog cov teeb meem cuam tshuam.

Q2: Yuav ua li cas yog tias cov neeg siv khoom tsuas muaj cov qauv tsis muaj daim duab?

A2: Cov neeg siv khoom yuav tsum xa koj cov qauv mus rau peb lub tuam txhab thiab peb lub tuam txhab ua haujlwm zoo yuav ua qhov ntsuas tag nrho. Tom qab ntawd peb lub tuam tsev engineering yuav muab cov duab kos kom ruaj khov dua nrog cov neeg siv khoom.

Q3: Tus qauv tsim qauv ntawm peb tus qauv BeCu Fingerstock yog dab tsi?

A3: BeCu Fingerstock txaus siab rau qhov muaj zog hloov pauv, peb cov khoom lag luam xa mus rau tus qauv thoob ntiaj teb ntawm BeCu Fingerstock kom paub meej cov qauv tsim nyog thiab kev tiv thaiv kev ua haujlwm.

Q4: Vim li cas ho tsis siv cov khoom siv softening?

A4: lub softening technoloay yog siv cov tshuaj kho mob txoj kev.Tom qab kho cov thickness ntawm softening yog tsis uniformYog hais tias tsis electroplated nto yuav qias neeg, thiab lwm yam, cuam tshuam rau nws cov tsos.

Q5: Kev kho cua sov rwb thaiv tsev yog 600F. koj tuaj yeem hloov nws?

A5: Nws yog qhov kev kho cua sov zoo tshaj plaws los ntawm Asmeskas cov khoom siv Hoobkas thiab peb lub tuam txhab hloov tsis tau;
