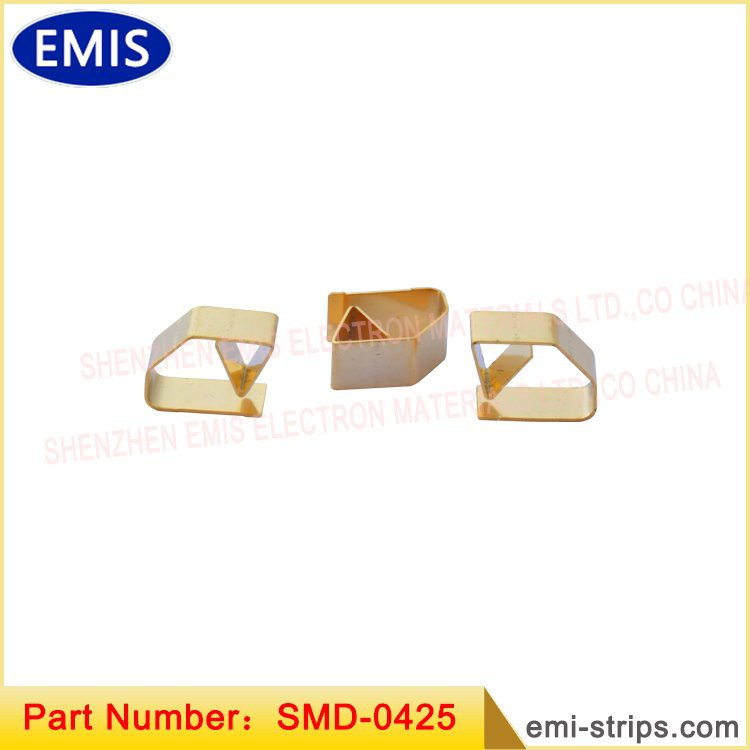

SMT EMI Hu rau ntiv tes



Peb muab SMT EMI Hu Rau Tus ntiv tes. Vim nws cov conductivity siab, nws tuaj yeem tiv thaiv EMI to thiab txo cov khoom vibration.cov no yog cov khoom siv hluav taws xob siv hauv cov khoom siv hluav taws xob thiab cov tshuab los txo cov kev cuam tshuam electromagnetic.





Nyob rau hauv lub ntiaj teb no ntawm advanced electronics, electromagnetic cuam tshuam (EMI) ua rau muaj kev sib tw tseem ceeb rau kev ua tau zoo thiab kev ntseeg siab ntawm cov khoom siv hluav taws xob thiab cov tshuab. Txhawm rau daws qhov teeb meem no, kev siv SMT EMI cov ntiv tes tiv tauj tau tshwm sim los ua qhov kev daws teeb meem zoo heev. Cov khoom siv caij nplooj ntoos hlav no yog tsim los muab cov khoom siv hluav taws xob siab thiab kev ua haujlwm zoo, ua rau lawv tiv thaiv EMI kom zoo thiab txo cov khoom vibration. Hauv tsab xov xwm no, peb yuav tshawb txog qhov tseem ceeb ntawm SMT EMI hu rau cov ntiv tes thiab lawv lub luag haujlwm hauv kev txo cov kev cuam tshuam ntawm electromagnetic cuam tshuam hauv cov khoom siv hluav taws xob.

Kev Xav Tau rau EMI Mitigation:

Electromagnetic cuam tshuam yog qhov tshwm sim uas tsis xav tau hluav taws xob hluav taws xob cuam tshuam kev ua haujlwm ntawm hluav taws xob. EMI tuaj yeem tshwm sim los ntawm ntau qhov chaw, suav nrog cov khoom siv hluav taws xob nyob ze, kab hluav taws xob, xov tooj cua zaus teeb liab, thiab txawm tias muaj xwm txheej ntuj. Nws tuaj yeem ua rau lub teeb liab degradation, malfunctions, lossis ua tsis tiav ntawm cov khoom siv hluav taws xob, ua rau kev poob nyiaj txiag tseem ceeb thiab cuam tshuam rau cov neeg siv kev paub.

SMT EMI Hu rau ntiv tes: Kev daws teeb meem zoo:

SMT EMI hu rau cov ntiv tes tau txais txiaj ntsig zoo li qhov tseem ceeb hauv kev tawm tsam EMI. Cov ntsiab lus zoo li lub caij nplooj ntoos hlav no yog tsim tshwj xeeb los ua kom muaj kev sib cuag ncaj qha nrog cov hlau casing lossis tiv thaiv cov khoom siv hluav taws xob. Lawv cov conductivity siab tso cai rau lawv muab txoj hauv kev uas tsis tshua muaj kev cuam tshuam rau electromagnetic zog, cuam tshuam nws kom deb ntawm cov khoom siv hluav taws xob rhiab heev thiab tiv thaiv kev cuam tshuam.

Conductivity thiab EMI Tiv Thaiv:

Cov yam ntxwv tseem ceeb uas teeb tsa SMT EMI kev sib cuag ntiv tes sib nrug yog lawv cov conductivity siab. Cov khoom no feem ntau yog tsim los siv cov khoom siv xws li lub caij nplooj ntoos hlav steel lossis beryllium tooj liab, paub txog lawv cov khoom siv hluav taws xob zoo heev. Txoj kev tiv thaiv qis uas tsim los ntawm cov ntiv tes sib txuas tso cai rau kom muaj txiaj ntsig zoo ntawm cov hluav taws xob hluav taws xob, txo cov peev xwm ntawm EMI to.

Mechanical Resilience thiab Vibration Reduction:

Ntxiv nrog rau lawv cov hluav taws xob conductivity, SMT EMI hu rau cov ntiv tes muaj cov khoom siv zoo heev. Qhov kev tiv thaiv no ua rau lawv nqus cov kev co thiab kev poob siab uas tuaj yeem cuam tshuam rau cov khoom siv hluav taws xob. Los ntawm kev txo qis kev vibrations, cov ntiv tes tiv tauj no tsis tsuas yog txhim kho lub neej ntev thiab ua haujlwm ntawm cov khoom siv, tab sis kuj tseem ua rau muaj kev ruaj ntseg thiab kev ua tau zoo ntawm cov tshuab uas lawv tau ua haujlwm.

Versatility thiab Integration:

SMT EMI hu rau cov ntiv tes yog qhov muaj ntau yam thiab tuaj yeem ua ke rau hauv ntau yam khoom siv hluav taws xob thiab tshuab. Txawm hais tias nws yog cov neeg siv khoom siv hluav taws xob, khoom siv hluav taws xob hauv tsheb, cov khoom siv sib txuas lus, lossis cov tshuab ua lag luam, cov ntiv tes tiv tauj no muab kev sib txuas hluav taws xob zoo thiab zoo ib yam. Tsis tas li ntawd, lawv cov kev sib raug zoo nrog cov thev naus laus zis saum npoo av (SMT) tso cai rau kev sib koom ua ke yooj yim rau cov ntawv luam tawm Circuit Board (PCBs), ua kom cov txheej txheem tsim khoom.

Xaus:

Electromagnetic cuam tshuam tseem yog ib qho kev txhawj xeeb tseem ceeb hauv ntiaj teb ntawm cov khoom siv hluav taws xob, uas muaj feem cuam tshuam rau kev ua haujlwm thiab kev ntseeg siab ntawm cov khoom siv hluav taws xob thiab cov tshuab. SMT EMI hu rau cov ntiv tes ua cov khoom tseem ceeb uas txo cov EMI to thiab txo cov khoom vibration. Nrog rau lawv cov conductivity siab thiab mechanical resilience, cov khoom zoo li lub caij nplooj ntoos hlav no muab kev sib txuas hluav taws xob zoo thaum tiv thaiv lub zog hluav taws xob tsis xav tau los ntawm kev cuam tshuam nrog cov khoom siv hluav taws xob. Los ntawm kev koom nrog SMT EMI cov ntiv tes tiv tauj, Peb tuaj yeem ua kom muaj kev sib raug zoo ntawm electromagnetic thiab xa cov khoom siv hluav taws xob zoo uas ua tau raws li qhov xav tau ntawm lub ntiaj teb niaj hnub siv tshuab.





Kev tsim cov txheej txheem ntws ntawm BeCu Fingerstock



Qhov zoo ntawm lub tuam txhab

Ob tus kws tshaj lij Tooling designers ob leeg muaj ntau tshaj 10 Xyoo ntawm kev tsim kev paub.Peb tawg los ntawm cov txheej txheem nyuaj nyob rau hauv lub stamping teb nrog imported tooling ua cov cuab yeej thiab haib tooling manufacturing muaj peev xwm.Ntau tshaj 15 txheej pwm tuaj yeem ua tiav txhua lub hlis.

Kev xa khoom sai: 7 hnub rau cov qauv coj mus kuaj thiab 16 hnub rau cov pwm ntau lawm.

Extraordinarily Tooling lub neej: peb lub tuam txhab txais tshwj xeeb pwm cov ntaub ntawv rau ntau tshaj 100 lab lub sij hawm.

Peb Lub Tuam Txhab tsuas yog siv cov khoom siv raw los ntawm BrushWellman Co., Ltd ntawm Asmeskas.

Cov khoom siv loj:

Precision grinder: 4 poob lawm;

Milling tshuab: 3 teeb;

Drilling tshuab: 3 teeb;

Hlau-electrode txiav: 2 teeb;

millwrights: 1 set;

lwm: 5set

Electroplating ntawm Beryllium Copper ntau lawm nto

Cov duab zoo nkauj ntawm cov khoom siv electroplating







Cov lus nug thiab cov yuam sij ntawm fingerstock thiab gaskets kev yuav khoom:

Q1: SMT EMI hu rau tus ntiv tes yog dab tsi?

A1: Ib qho SMT EMI hu rau tus ntiv tes yog lub caij nplooj ntoos hlav zoo li siv hauv cov khoom siv hluav taws xob thiab cov tshuab kom txo tau cov electromagnetic cuam tshuam. Nws yog tsim los ua kom muaj kev sib cuag ncaj qha nrog cov hlau casing los yog shielding ntawm ib tug ntaus ntawv, muab ib tug tsawg-impedance txoj kev rau electromagnetic zog ntws thiab txo lub peev xwm los cuam tshuam.



Q2: SMT EMI tiv thaiv tus ntiv tes tiv thaiv EMI li cas?

A2: SMT EMI hu rau cov ntiv tes muaj qhov ua tau zoo, tso cai rau lawv kom ua kom muaj zog hluav taws xob zoo. Los ntawm kev muab txoj kev tiv thaiv qis, lawv hloov lub zog kom deb ntawm cov khoom siv hluav taws xob rhiab heev, tiv thaiv EMI to thiab tswj kev ncaj ncees ntawm cov teeb liab.



Q3: Dab tsi yog lub luag haujlwm ntawm cov neeg kho tshuab resilience ua si hauv SMT EMI hu rau cov ntiv tes?

A3: Cov neeg kho tshuab resilience ntawm SMT EMI hu rau cov ntiv tes tso cai rau lawv nqus cov vibrations thiab shocks uas tuaj yeem ua rau muaj kev puas tsuaj rau cov khoom siv hluav taws xob. Los ntawm kev txo cov khoom vibration, cov ntiv tes tiv tauj no ua rau muaj kev ruaj ntseg, ruaj khov, thiab kev ua haujlwm ntawm cov tshuab hluav taws xob.



Q4: Dab tsi yog cov txiaj ntsig ntawm kev siv SMT EMI hu rau tus ntiv tes?

A4: Qee qhov txiaj ntsig tseem ceeb ntawm kev siv SMT EMI cov ntiv tes sib cuag suav nrog kev txo qis EMI, txo EMI to, txhim kho cov teeb meem kev ncaj ncees, txo cov khoom vibration, txhim kho cov neeg kho tshuab resilience, thiab kev sib raug zoo nrog cov cuab yeej siv saum npoo av kom yooj yim kev koom ua ke rau PCBs.



Q5: SMT EMI cov ntiv tes puas tuaj yeem hloov kho rau cov ntawv thov tshwj xeeb?

A5: Yog lawm, SMT EMI hu rau cov ntiv tes tuaj yeem tsim thiab kho kom tau raws li cov cai tshwj xeeb ntawm cov ntawv thov sib txawv. Cov yam ntxwv xws li qhov ntev, cov khoom siv, thiab cov khoom siv kho tshuab tuaj yeem ua kom haum raws li qhov xav tau ntawm cov khoom siv hluav taws xob lossis cov kab ke uas lawv yuav ua haujlwm.
