Khoom Taw Qhia
Peb muab Tin-plated emi strips ntawm shielding ntiv tes.Tom qab tin plating ntawm cov ntiv tes, nws tuaj yeem tiv thaiv oxidation nto ntawm cov khoom, yog li ua rau nws cov corrosion kuj. Nyob rau tib lub sijhawm, nws tuaj yeem nce nws cov conductivity.
Khoom Parameter
|
|
|
Tshooj Naj Npawb |
T (mm) |
A |
B |
C |
D |
P |
S |
Lmax |
Nodes |
Xim Xim |
|

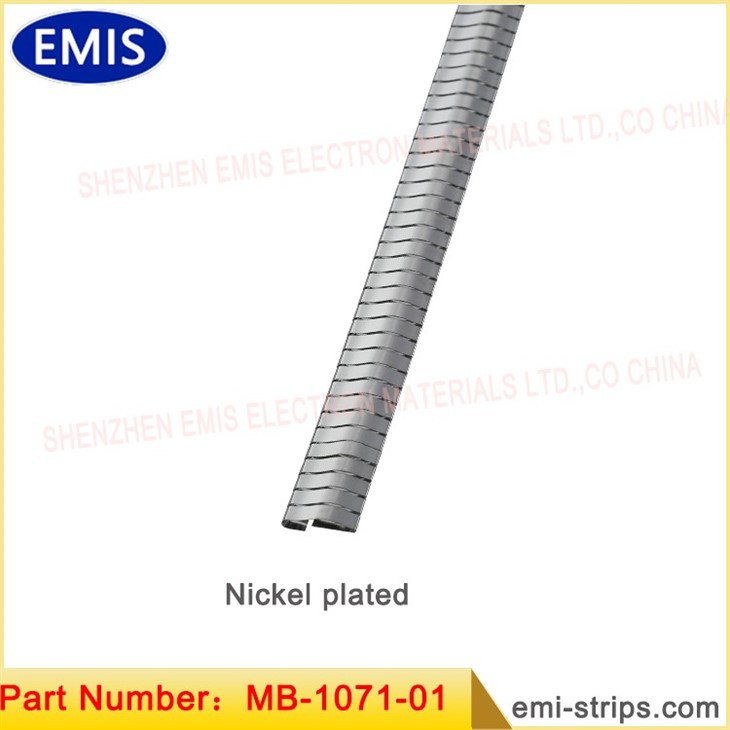

MB -1071-01 |
0.08 |
11.43 |
3.3 |
6.7 |
1.65 |
3.175 |
0.46 |
4 06mm |
128 |
Bright tiav |
|
MB-1071-0S/N |
0.08 |
11.43 |
3.3 |
6.7 |
1.65 |
3.175 |
0.46 |
4 06mm |
128 |
-0S: Tin / -0N: Nickel |
|
MB-1071C-01 |
0.08 |
11.43 |
3.3 |
6.7 |
1.65 |
3.175 |
0.46 |
7.62 M |
2400 |
kauj; Bright tiav |
|
MB -2071-01 |
0.05 |
11.43 |
3.3 |
6.7 |
1.65 |
3.175 |
0.46 |
4 06mm |
128 |
Bright tiav |
|
MB-2071-0S/N |
0.05 |
11.43 |
3.3 |
6.7 |
1.65 |
3.175 |
0.46 |
4 06mm |
128 |
-0S: Tin / -0N: Nickel |
|
MB-2071C-01 |
0.05 |
11.43 |
3.3 |
6.7 |
1.65 |
3.175 |
0.46 |
7.62 M |
2400 |
kauj; Bright tiav |
|
Re: Ntev tuaj yeem txiav rau hauv X nodes, X=1.2.3.4..., Qhov saum npoo kuj tuaj yeem plated nrog kub. Nyiaj & Zinc thiab lwm yam; |
||||||||||
|
Lus Cim: Cov node ntev yog muaj tsib qhov luv luv, xa mus rau 15.88 mm. |
||||||||||
Khoom feature thiab daim ntawv thov
Tin-plated EMI (Electromagnetic Interference) strips ntawm shielding ntiv tes yog siv los muab electromagnetic shielding nyob rau hauv ntau yam khoom siv hluav taws xob thiab hluav taws xob. Qhov tseem ceeb ntawm cov strips no yog lawv lub peev xwm los thaiv lossis txo cov hluav taws xob hluav taws xob hluav taws xob tawm los ntawm cov khoom siv hluav taws xob lossis cov khoom siv. Nov yog qee qhov kev siv thiab nta ntawm tin-plated EMI strips ntawm shielding ntiv tes:
Nta:
Tin-plated Txheej: Cov tin-plated txheej ntawm cov strips txhim kho lawv cov hluav taws xob conductivity thiab corrosion kuj, ua rau lawv haum rau kev siv mus sij hawm ntev hauv ntau qhov chaw.
Shielding Effectiveness: Cov strips no yog tsim los muab kev tiv thaiv zoo, txo qhov kev cuam tshuam ntawm electromagnetic cuam tshuam thiab tiv thaiv cov teeb liab degradation lossis cuam tshuam.
Finger Design: Cov qauv zoo li tus ntiv tes ntawm cov strips tso cai rau lawv yooj yim ntsia los yog txuas rau cov chaw tshwj xeeb, muab kev tiv thaiv tiv thaiv rau cov khoom tsis zoo lossis cov ntu.
Flexibility: Tin-plated EMI strips feem ntau yog ua los ntawm cov ntaub ntawv hloov tau yooj yim, ua rau lawv ua raws li cov duab tsis zoo lossis khoov, ua rau lawv haum rau ntau yam kev siv.
Yooj Yim Txhim Kho: Cov strips no feem ntau yog tsim los rau kev teeb tsa yooj yim, tso cai rau lawv yooj yim siv rau cov khoom siv hluav taws xob lossis khoom siv thaum tsim khoom lossis ua cov tshuaj retrofit.
Daim ntawv thov:
Printed Circuit Boards (PCBs): Tin-plated EMI strips tuaj yeem siv los tiv thaiv cov khoom rhiab ntawm PCBs los ntawm cov khoom siv hluav taws xob sab nraud, txo qhov kev pheej hmoo ntawm cov teeb liab degradation lossis ua haujlwm tsis zoo.
Electronic Enclosures: Cov strips no feem ntau yog siv los ua cov phab ntsa sab hauv ntawm cov khoom siv hluav taws xob, tsim kom muaj kev tiv thaiv hluav taws xob uas tiv thaiv hluav taws xob hluav taws xob los ntawm kev nkag los yog khiav ntawm lub qhov rooj.
Cables thiab Connectors: Tin-plated shielding ntiv tes tuaj yeem ua haujlwm ntawm cov cables thiab cov khoom sib txuas los tiv thaiv kev cuam tshuam hluav taws xob, ua kom ntseeg tau cov teeb liab xa mus thiab txo qhov kev pheej hmoo ntawm kev sib tham lossis cov ntaub ntawv kev noj nyiaj txiag.
Cov khoom siv sib txuas lus: EMI strips feem ntau siv hauv cov khoom siv sib txuas lus xws li routers, keyboards, thiab cov chaw nres tsheb hauv paus txhawm rau tiv thaiv kev cuam tshuam ntawm cov khoom thiab txhim kho kev ua haujlwm tag nrho.
Cov Khoom Siv Kho Mob: Cov cuab yeej siv kho mob muaj kev cuam tshuam rau electromagnetic cuam tshuam, xws li MRI cov cav tov lossis cov khoom siv cog qoob loo, tuaj yeem tau txais txiaj ntsig los ntawm tin-plated EMI strips los tswj cov teeb liab kev ncaj ncees thiab ua kom muaj kev ua haujlwm raug.
Cov lus qhia ntau lawm
Nyob rau niaj hnub no txoj kev nce toj nce toj kev siv tshuab, electromagnetic cuam tshuam (EMI) ua rau muaj kev sib tw tseem ceeb rau kev ua tau zoo thiab kev ntseeg siab ntawm cov khoom siv hluav taws xob. Txhawm rau tiv thaiv qhov teeb meem no, kev siv cov tshuaj tiv thaiv zoo tau dhau los ua qhov tseem ceeb. Ib qho kev daws teeb meem zoo li no yog tin-plated EMI strips ntawm cov ntiv tes tiv thaiv, uas tsis yog tsuas yog muab kev tiv thaiv zoo EMI tab sis kuj muab cov txiaj ntsig ntxiv ntawm kev tiv thaiv oxidation saum npoo thiab ua kom muaj zog ntxiv. Kab lus no tshawb txog cov txiaj ntsig thiab kev siv ntawm tin-plated EMI strips ntawm cov ntiv tes tiv thaiv, ua kom pom kev ntawm lawv lub luag haujlwm hauv kev txhim kho cov khoom lag luam thiab kev ua haujlwm ntev.
EMI Shielding: Ib qho Yuav Tsum Tau Ua: Electromagnetic cuam tshuam yog hais txog kev cuam tshuam los ntawm electromagnetic nthwv dej tawm ntawm cov khoom siv hluav taws xob. Qhov kev cuam tshuam no tuaj yeem cuam tshuam rau kev ua haujlwm ntawm cov khoom siv hluav taws xob thiab cov tshuab nyob ze, ua rau txo qis kev ua haujlwm, teeb liab degradation, thiab txawm tias ua tiav qhov system tsis ua haujlwm. Txhawm rau tiv thaiv EMI, yuav tsum muaj kev tiv thaiv zoo, thiab ib qho kev ntsuas no suav nrog kev siv EMI strips ntawm kev tiv thaiv ntiv tes.
Tin-Plated Shielding ntiv tes: Txhim kho kev ua tau zoo: Cov tin-plated EMI strips ntawm cov ntiv tes tiv thaiv yog cov kev daws teeb meem tshwj xeeb tsim los muab kev tiv thaiv zoo tshaj EMI. Cov strips no feem ntau yog tsim los ntawm cov khoom siv hluav taws xob, xws li tooj liab lossis beryllium tooj liab, uas muab kev tiv thaiv zoo heev. Txawm li cas los xij, daim ntawv thov txheej txheej tin-plating rau cov ntiv tes no muaj cov txiaj ntsig ntxiv uas txhim kho kev ua tau zoo tag nrho ntawm cov khoom.
Kev Tiv Thaiv Oxidation Deg: Ib qho ntawm cov txiaj ntsig tseem ceeb ntawm tin plating ntawm shielding fingerstock yog nws lub peev xwm los tiv thaiv oxidation nto. Oxidation tuaj yeem tshwm sim dhau sijhawm vim raug cuam tshuam rau ib puag ncig yam xws li ya raws, cua sov, thiab corrosive agents. Thaum lub npoo ntawm cov ntiv tes oxidizes, nws tuaj yeem cuam tshuam qhov kev tiv thaiv zoo thiab hluav taws xob conductivity ntawm cov khoom. Tin plating ua raws li cov txheej txheem tiv thaiv, tiv thaiv oxidation zoo thiab ua kom muaj kev ua tau zoo nyob rau lub sijhawm ntev.
Corrosion Resistance: Los ntawm inhibiting nto oxidation, tin-plated EMI strips ntawm shielding ntiv tes muab ntxiv corrosion kuj. Qhov no muaj txiaj ntsig tshwj xeeb hauv cov ntawv thov uas cov khoom yuav raug cuam tshuam rau qhov chaw hnyav, xws li kev teeb tsa sab nraum zoov lossis chaw tsim khoom lag luam. Cov khoom tiv thaiv corrosion-resistant ntawm tin plating pab tswj cov txheej txheem kev ncaj ncees ntawm cov ntiv tes, ua kom nws lub neej ntev thiab ua kom ntseeg tau kev ua tau zoo.
Enhanced Conductivity: Ntxiv nrog rau nws cov khoom tiv thaiv, tin plating kuj txhim kho cov hluav taws xob conductivity ntawm cov ntiv tes tiv thaiv. Tin yog cov khoom siv hluav taws xob zoo heev, tso cai rau kev sib kis tau zoo ntawm cov teeb liab hluav taws xob thiab txo qhov poob. Qhov nce conductivity muab los ntawm tin-plated fingerstock pab txhawb kom zoo dua teeb liab kev ncaj ncees thiab txo cov suab nrov hluav taws xob, ua rau kev txhim kho tag nrho cov khoom lag luam.
Daim ntawv thov thiab kev lag luam: Tin-plated EMI strips ntawm shielding ntiv tes pom cov ntawv thov hauv ntau qhov kev lag luam thiab cov khoom siv hluav taws xob. Lawv feem ntau siv rau hauv cov khoom siv sib txuas lus, cov cuab yeej kho mob, automotive electronics, aerospace systems, thiab industrial machinery, thiab lwm yam. Cov ntiv tes no tuaj yeem hloov kho kom tau raws li cov kev xav tau tshwj xeeb, suav nrog cov duab, qhov loj, thiab tuab, ua rau lawv hloov tau rau ntau yam kev xav tau tsim.
Cov ntsiab lus: Tin-plated EMI strips ntawm shielding ntiv tes muab cov kev daws teeb meem zoo rau kev tawm tsam electromagnetic cuam tshuam thaum ib txhij muab kev tiv thaiv oxidation saum npoo, tiv thaiv corrosion, thiab txhim kho conductivity. Cov txiaj ntsig zoo no ua rau kev txhim kho cov khoom lag luam, durability, thiab kev ntseeg siab hauv ntau qhov kev lag luam. Raws li kev siv thev naus laus zis txuas ntxiv mus, qhov kev thov kom muaj txiaj ntsig zoo EMI tiv thaiv kev daws teeb meem yuav nyob mus ntxiv, ua tin-plated shielding fingerstocks yog ib qho tseem ceeb hauv kev tshawb nrhiav rau kev ua haujlwm zoo thiab kev ua haujlwm ntev.
Khoom tsim nyog
Kev tsim cov txheej txheem ntws ntawm BeCu Fingerstock
Tsim Thiab Tsim Muaj Peev Xwm Ntawm Cov Cuab Yeej
Qhov zoo ntawm lub tuam txhab
Ob tus kws tshaj lij Tooling designers ob leeg muaj ntau tshaj 10 Xyoo ntawm kev tsim kev paub.Peb tawg los ntawm cov txheej txheem nyuaj nyob rau hauv lub stamping teb nrog imported tooling ua cov cuab yeej thiab haib tooling manufacturing muaj peev xwm.Ntau tshaj 15 txheej pwm tuaj yeem ua tiav txhua lub hlis.
Kev xa khoom sai: 7 hnub rau cov qauv coj mus kuaj thiab 16 hnub rau cov pwm ntau lawm.
Extraordinarily Tooling lub neej: peb lub tuam txhab txais tshwj xeeb pwm cov ntaub ntawv rau ntau tshaj 100 lab lub sij hawm.
Peb Lub Tuam Txhab tsuas yog siv cov khoom siv raw los ntawm BrushWellman Co., Ltd ntawm Asmeskas.
Cov khoom siv loj:
Precision grinder: 4 poob lawm;
Milling tshuab: 3 teeb;
Drilling tshuab: 3 teeb;
Hlau-electrode txiav: 2 teeb;
millwrights: 1 set;
lwm: 5set
Xa, shipping thiab pab
FAQ
Cov lus nug thiab cov yuam sij ntawm fingerstock thiab gaskets kev yuav khoom:
Q1: Lub hom phiaj ntawm tin-plated EMI strips yog dab tsi?
A1: Tin-plated EMI strips yog siv los muab electromagnetic shielding los ntawm kev thaiv lossis txo cov electromagnetic cuam tshuam hauv kev siv hluav taws xob thiab hluav taws xob.
Q2: Lub tin-plated txheej ntawm EMI strips ua li cas?
A2: Cov tin-plated txheej txhim kho cov hluav taws xob conductivity thiab corrosion kuj ntawm cov strips, ua rau lawv tsim nyog rau kev siv mus sij hawm ntev thiab ua kom ntseeg tau kev ua tau zoo.
Q3: Puas tuaj yeem tin-plated EMI strips tau yooj yim ntsia?
A3: Yog lawm, tin-plated EMI strips yog tsim los rau kev yooj yim installation. Lawv tuaj yeem siv tau thaum lub sijhawm tsim khoom lossis rov kho dua rau cov khoom siv uas twb muaj lawm, ua rau lawv yooj yim siv.
Q4: Dab tsi yog qhov zoo ntawm kev siv tin-plated EMI strips?
A4: Qhov zoo muaj xws li kev tiv thaiv kev ua haujlwm siab, ua kom yooj yim ua raws li ntau yam duab, tiv thaiv corrosion, thiab yooj yim ntawm installation.
Q5: Puas muaj kev xav txog kev nyab xeeb thaum siv tin-plated EMI strips?
A5: Kev txiav txim siab txog kev nyab xeeb yuav txawv nyob ntawm daim ntawv thov. Nws yog ib qho tseem ceeb uas yuav tsum tau ua raws li cov lus qhia thiab cov qauv tsim nyog los xyuas kom meej hauv av thiab txo cov kev pheej hmoo cuam tshuam nrog hluav taws xob lossis hluav taws xob.
