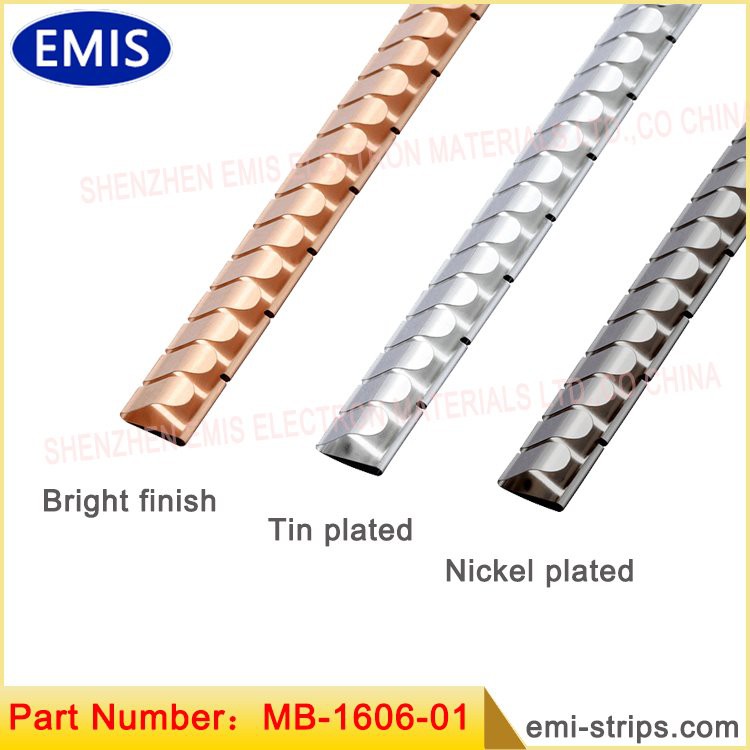

Khoom Taw Qhia
Peb muab Clip-on thiab ntug mount gaskets ntawm "D" lances. Cov khoom no tuaj yeem ntsia tau yooj yim, thiab muaj ntau yam qauv thiab kev teeb tsa, thiab cov neeg siv khoom tuaj yeem xaiv raws li lawv xav tau.
Khoom Parameter
|
Tshooj Naj Npawb |
T (mm) |
A |
B |
C |
D |
P |
S |
Lmax |
Nodes |
Xim Xim |
|
MB -1606-01 |
0.127 |
9.52 |
5.08 |
1.6 |
1.6 |
12.7 |
1 |
4 06mm |
32 |
Bright tiav |
|
MB -1606-01 |
0.127 |
9.52 |
5.08 |
1.6 |
1.6 |
12.7 |
1 |
609mm ua |
48 |
Bright tiav |
|

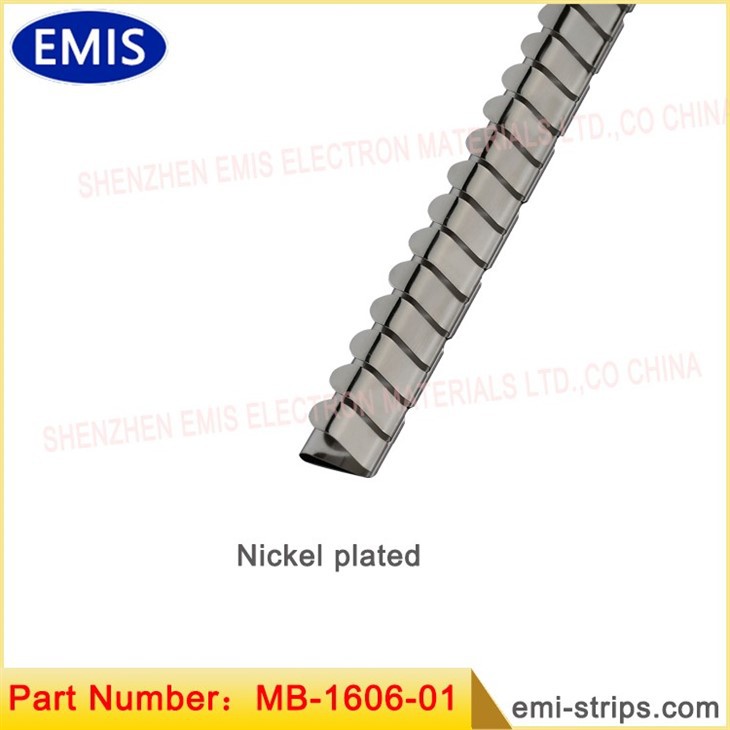

MB-1606-0S/N |
0.127 |
9.52 |
5.08 |
1.6 |
1.6 |
12.7 |
1 |
4 06mm |
32 |
-0S: Tin / -0N: Nickel |
|
MB -2606-01 |
0.08 |
9.52 |
5.08 |
1.6 |
1.6 |
12.7 |
1 |
609mm ua |
48 |
Siv 0.08 hli ua |
|
Re: Ntev tuaj yeem txiav rau hauv X nodes, X=1.2.3.4..., Qhov saum npoo kuj tuaj yeem plated nrog kub. Nyiaj & Zinc thiab lwm yam; |
||||||||||
Khoom feature thiab daim ntawv thov
Clip-on thiab ntug mount gaskets yog tshwj xeeb sealing Cheebtsam siv nyob rau hauv ntau yam industries los tsim ib tug nruj seal ntawm ob mating nto. Cov gaskets no muaj cov yam ntxwv tshwj xeeb thiab pom cov ntawv thov hauv cov ntsiab lus sib txawv. Nov yog qee qhov ntawm lawv cov yam ntxwv tseem ceeb thiab kev siv:
Clip-on Gaskets feature:
Yooj yim Installation: Clip-on gaskets yog tsim los nrog clips los yog fasteners uas tso cai rau kom ceev thiab yooj yim installation mus rau mating nto.
Secure Fit: Cov clips los yog fasteners pab kom muaj kev ruaj ntseg haum thiab tiv thaiv lub gasket los ntawm dislodging los yog hloov thaum lub sij hawm ua hauj lwm.
Reusability: Clip-on gaskets feem ntau yuav rov qab siv tau ntau zaus, muab kev txuag nqi thiab yooj yim thaum sib dhos lossis kho.
Daim ntawv thov:
Automotive Industry - Clip-on gaskets feem ntau yog siv rau hauv kev siv tsheb xws li cua nkag, cav npog, thiab lub cev vaj huam sib luag.
Cov Khoom Siv Hluav Taws Xob thiab Cov Khoom Siv Hluav Taws Xob - Lawv tau siv rau hauv cov khoom siv hluav taws xob, cov txee tswj, thiab cov khoom siv los muab cov plua plav thiab cov dej noo tiv thaiv.
HVAC Systems - Clip-on gaskets pom daim ntawv thov hauv cov cua sov, qhov cua, thiab cua txias (HVAC) cov tshuab los kaw cov ductwork pob qij txha, nkag mus rau cov vaj huam sib luag, thiab cov khoom siv cua.
Ntug Mount Gaskets feature:
Ntug Sealing: Ntug mount gaskets yog tsim los tsim ib lub foob raws li cov npoo los yog ib puag ncig ntawm mating nto, es tsis npog tag nrho saum npoo.
Versatility: Lawv tuaj yeem hloov kho kom haum rau ntau yam ntug profiles, haum rau cov duab tsis xwm yeem lossis nkhaus kom zoo sealing.
Vibration Damping: Ntug mount gaskets feem ntau muab cov txiaj ntsig ntxiv xws li kev co dampening, txo cov suab nrov kis tau tus mob thiab txhim kho tag nrho cov kev ua haujlwm ntawm lub cev.
Daim ntawv thov:
Electronics thiab Telecommunications - Ntug mount gaskets yog siv rau hauv cov khoom siv hluav taws xob, cov khoom siv sib txuas lus, thiab cov ntaub thaiv npog los muab EMI / RFI shielding thiab ib puag ncig sealing.
Enclosures thiab Txee - Lawv nrhiav tau daim ntawv thov nyob rau hauv industrial enclosures, tswj txee, thiab hluav taws xob thawv, xyuas kom meej cov plua plav, ya raws, thiab kev tiv thaiv ib puag ncig.
Teeb pom kev zoo thiab cov vaj huam sib luag - Ntug mount gaskets yog siv rau hauv cov khoom siv teeb pom kev zoo, cov teeb pom kev zoo, thiab kos npe los tsim kom muaj kev sib khi tiv thaiv kev ya raws, plua plav, thiab lwm yam kab mob.
Cov lus qhia ntau lawm
Thaum nws los tsim kom muaj kev ruaj ntseg foob thiab tiv thaiv cov xau, clip-on thiab ntug mount gaskets ua lub luag haujlwm tseem ceeb. Cov khoom siv ntau yam no yog tsim los kom haum "D" lances thiab muab cov kev daws teeb meem txhim khu kev qha hauv ntau qhov kev lag luam. Muab kev yooj yim ntawm kev teeb tsa, ntau yam qauv, thiab ntau txoj kev teeb tsa, cov neeg siv khoom tuaj yeem xaiv lub gasket zoo meej kom tau raws li lawv cov kev xav tau tshwj xeeb. Nyob rau hauv tsab xov xwm no, peb yuav tshawb txog cov yam ntxwv thiab cov txiaj ntsig ntawm clip-on thiab ntug mount gaskets rau "D" lances.
Yooj yim Installation
Ib qho ntawm cov txiaj ntsig tseem ceeb ntawm clip-on thiab ntug mount gaskets rau "D" lances yog lawv qhov yooj yim ntawm kev teeb tsa. Cov gaskets no yog engineered los ua tus neeg siv-phooj ywg thiab tuaj yeem txuas tau yooj yim rau cov lance profiles. Nrog rau kev siv zog tsawg, cov neeg siv tuaj yeem ua tiav qhov kev ruaj ntseg thiab ua haujlwm zoo yam tsis tas yuav siv cov cuab yeej nyuaj lossis khoom siv.
Ntau Txoj Kev Txhim Kho
Lwm qhov kom zoo dua ntawm clip-on thiab ntug mount gaskets rau "D" lances yog muaj ntau txoj kev teeb tsa. Qhov kev hloov pauv no ua kom cov neeg siv tuaj yeem xaiv txoj hauv kev uas tsim nyog tshaj plaws raws li lawv cov khoom siv, kev nyiam, thiab kev xav tau.
Clip-on gaskets yog tsim los nrog clips los yog raws uas ruaj ntseg txuas rau lub lance profile, muab ib qho kev ruaj ntseg foob. Cov clips tej zaum yuav muaj ib tug snap-on tsim los yog xav tau phau ntawv txuas, nyob ntawm seb hom gasket thiab cov chaw tsim khoom specifications. Txoj kev no muab kev yooj yim thiab yooj yim ntawm kev hloov thaum tsim nyog.
Ntawm qhov tod tes, ntug mount gaskets cia siab rau qhov compression haum ntawm lance profile thiab gasket nws tus kheej. Los ntawm nias lub gasket mus rau ntawm ntug ntawm lub lance, ib tug nruj seal yog tiav. Txoj kev teeb tsa no yog qhov tshwj xeeb tshaj yog thaum lub lance profile tsis muaj qhov sib txuas ua ke.
Customizable Solutions
Txhawm rau kom cov neeg siv khoom txaus siab, ntau lub tuam txhab muab cov kev xaiv kho kom haum rau clip-on thiab ntug mount gaskets. Cov neeg siv khoom tuaj yeem thov qhov ntev, cov ntaub ntawv, thiab txawm tias xim nyiam kom phim lawv cov kev xav tau tshwj xeeb. Qhov kev hloov pauv no ua rau muaj kev sib koom ua ke rau hauv cov tshuab uas twb muaj lawm thiab txhawb kev ua haujlwm zoo.
Xaus
Clip-on thiab ntug mount gaskets rau "D" lances muab cov neeg siv khoom nrog ntau yam thiab yooj yim-rau-nruab sealing kev daws teeb meem. Nrog rau ntau yam qauv, cov ntaub ntawv, thiab cov txheej txheem kev teeb tsa muaj, cov gaskets tuaj yeem tsim kho kom tau raws li ntau yam kev lag luam xav tau. Los ntawm kev xaiv clip-on thiab ntug mount gaskets, cov neeg siv khoom tuaj yeem txaus siab rau cov txiaj ntsig ntawm kev ua tau zoo, kev ntseeg tau, thiab kev hloov kho, kom ntseeg tau tias kev sib khi ntev ntev.
Khoom tsim nyog
Kev tsim cov txheej txheem ntws ntawm BeCu Fingerstock
Tsim Thiab Tsim Muaj Peev Xwm Ntawm Cov Cuab Yeej
Qhov zoo ntawm lub tuam txhab
Ob tus kws tshaj lij Tooling designers ob leeg muaj ntau tshaj 10 Xyoo ntawm kev tsim kev paub.Peb tawg los ntawm cov txheej txheem nyuaj nyob rau hauv lub stamping teb nrog imported tooling ua cov cuab yeej thiab haib tooling manufacturing muaj peev xwm.Ntau tshaj 15 txheej pwm tuaj yeem ua tiav txhua lub hlis.
Kev xa khoom sai: 7 hnub rau cov qauv coj mus kuaj thiab 16 hnub rau cov pwm ntau lawm.
Extraordinarily Tooling lub neej: peb lub tuam txhab txais tshwj xeeb pwm cov ntaub ntawv rau ntau tshaj 100 lab lub sij hawm.
Peb Lub Tuam Txhab tsuas yog siv cov khoom siv raw los ntawm BrushWellman Co., Ltd ntawm Asmeskas.
Cov khoom siv loj:
Precision grinder: 4 poob lawm;
Milling tshuab: 3 teeb;
Drilling tshuab: 3 teeb;
Hlau-electrode txiav: 2 teeb;
millwrights: 1 set;
lwm: 5set
Electroplating ntawm Beryllium Copper ntau lawm nto
Cov duab zoo nkauj ntawm cov khoom siv electroplating
Cov txheej txheem tswj kom zoo
Environmental Requirements rau cov khoom
Peb cov khoom BeCu ua tau raws li qhov yuav tsum tau ua ntawm SGS daim ntawv qhia, ROHS daim ntawv qhia, REACH, Halogen-dawb (HF) daim ntawv qhia, thiab lwm yam.
Xa, shipping thiab pab
FAQ
Cov lus nug thiab cov yuam sij ntawm fingerstock thiab gaskets kev yuav khoom:
Q1: Dab tsi yog clip-on gasket?
A1: clip-on gasket yog cov khoom sib khi nrog cov hlua khi los yog cov hlua khi uas tso cai rau kev txhim kho yooj yim thiab ruaj ntseg txuas rau mating nto.
Q2: Dab tsi yog qhov zoo ntawm kev siv clip-on gaskets?
A2: Clip-on gaskets muab kev yooj yim thiab yooj yim installation, kom muaj kev ruaj ntseg haum thiab txo qhov kev pheej hmoo ntawm dislodging thaum ua haujlwm. Lawv kuj tuaj yeem rov siv tau ntau zaus, muab kev txuag nqi thiab yooj yim.
Q3: Hauv kev lag luam twg yog clip-on gaskets nquag siv?
A3: Clip-on gaskets feem ntau siv hauv kev siv tsheb, hluav taws xob thiab khoom siv, thiab HVAC systems, thiab lwm yam.
Q4: Dab tsi yog ntug mount gasket?
A4: Ntug mount gasket yog cov khoom sib khi tsim los tsim cov foob raws li cov npoo los yog ib puag ncig ntawm mating nto, es tsis npog tag nrho saum npoo.
Q5: Dab tsi clip-on thiab ntug mount gaskets txawv ntawm ib leeg?
A5: Clip-on gaskets feature built-in clips los yog fasteners rau kev yooj yim installation thiab ruaj ntseg txuas, thaum ntug mount gaskets yog tsim los tsim ib lub foob nyob rau hauv cov npoo los yog perimeters ntawm mating nto. Clip-on gaskets npog tag nrho saum npoo, thaum ntug mount gaskets tsom rau cov npoo tshwj xeeb.
