Tsis muaj Snag thiab Foldover BeCu ntiv tes Tshuag

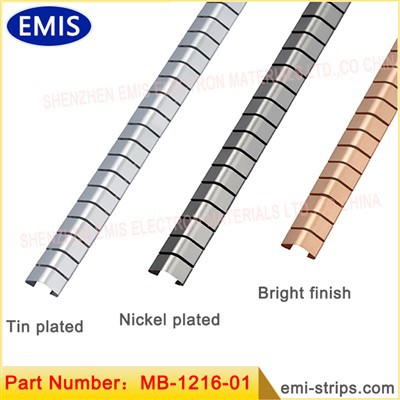

Peb muab Tsis muaj snag thiab foldover BeCu ntiv tes Tshuag. Qhov no series ntawm EMI shielding gasekt txais 3M 9469 nplaum daim kab xev rau nplaum installation. Muaj nyob rau hauv ntau yam ntawm plated tiav.







Tshooj Naj Npawb	T (mm)	A	B	C	P	S	Lmax	Nodes	Xim Xim
MB -1012-01	0.0635	8.13	2.8	5.3	4.75	0.45	6 12mm	129	Bright tiav
MB-1012-0S/N	0.0635	8.13	2.8	5.3	4.75	0.45	6 12mm	129	-0S: Tin / -0N: Nickel
MB-1012C-01	0.0635	8.13	2.8	5.3	4.75	0.45	7.62 M	1605	kauj; Bright tiav
MB -2012-01	0.05	8.13	2.8	5.3	4.75	0.45	6 12mm	129	Bright tiav
MB-2012-0S/N	0.05	8.13	2.8	5.3	4.75	0.45	6 12mm	129	-0S: Tin / -0N: Nickel
Re: Ntev tuaj yeem txiav rau hauv X nodes, X=1.2.3.4..., Qhov saum npoo kuj tuaj yeem plated nrog kub. Nyiaj & Zinc thiab lwm yam;



Tsis muaj Snag Series shielding gaskets muab tus tsim qauv qis compression, tsis muaj snag tsim. Muab nrog 3M 9469 daim kab xev rau tus kheej, cov beryllium tooj liab shielding gaskets muab kev yooj yim thiab ruaj ntseg mounting. Cov khoom feem ntau muaj cov nram qab no zoo feature:



Kev tiv thaiv kev ua tau zoo ntawm> 100 dB (77-012) thiab 80 dB (77-014) rau 100 MHz dav hlau nthwv dej

Ib qho yooj yim, nqi-zoo installation vim fasteners tsis tas yuav tsum tau

Zoo tagnrho raws li ib tug tag nrho-lub hom phiaj kev sib cuag sawb rau hlau txee thiab hluav taws xob enclosures

Muaj nyob rau hauv ntau yam ntawm plated tiav, Qhov saum npoo kuj tuaj yeem plated nrog kub. Silver & Zinc thiab lwm yam

Muab nyob rau hauv tus qauv 612.00 mm ntev lossis lwm qhov ntev

Daim ntawv thov: Lub foldover BeCu ntiv tes feem ntau yog siv rau hauv cov ntawv thov uas EMI tiv thaiv thiab hauv av yog qhov tseem ceeb, xws li cov khoom siv hluav taws xob, cov khoom sib txuas, cov rooj sib tham hauv Circuit Court, lossis txhua qhov xwm txheej uas tsim nyog siv hluav taws xob sib raug zoo. Lub foldover tsim tso cai rau yooj yim installation thiab tshem tawm, yooj yim txij nkawm thiab reconfiguration ntawm hluav taws xob systems.





Electromagnetic cuam tshuam (EMI) yog ib qho kev sib tw uas tau ntsib los ntawm ntau lub lag luam niaj hnub no. EMI tiv thaiv kev daws teeb meem zoo yog qhov tseem ceeb rau kev tiv thaiv cov khoom siv hluav taws xob zoo los ntawm hluav taws xob hluav taws xob thiab ua kom pom kev ua haujlwm zoo. Ntawm cov kev xaiv tiv thaiv ntau yam muaj, BeCu ntiv tes Tshuag sawv tawm raws li kev daws teeb meem txhim khu kev qha thiab ntau yam. Nyob rau hauv tsab xov xwm no, peb yuav delve rau hauv cov txiaj ntsig thiab cov yam ntxwv ntawm peb tsis muaj snag thiab foldover BeCu ntiv tes Tshuag, uas yog txhim kho los ntawm kev siv 3M 9469 nplaum daim kab xev rau kev yooj yim installation thiab tuaj nyob rau hauv ib tug ntau yam ntawm plated finishes kom tau raws li ntau haiv neeg daim ntawv thov. .

Kev tiv thaiv tsis sib xws nrog BeCu ntiv tes Tshuag: Beryllium Copper (BeCu) ntiv tes cov khoom muaj npe nrov rau nws qhov tshwj xeeb hluav taws xob conductivity thiab corrosion kuj. Nws ua haujlwm zoo thaiv cov tsis xav tau electromagnetic tsis thaum muab txoj hauv kev qis impedance rau dissipation ntawm cov hluav taws xob tam sim no. Tus ntiv tes tsim tshwj xeeb tso cai rau kev yooj yim compression thiab nthuav dav, ua rau nws zoo tagnrho rau cov ntawv thov uas yuav tsum tau rov nkag los lossis txav mus. Qhov tsis muaj snag thiab foldover tsim ntxiv txhim khu kev siv tau thiab yooj yim ntawm EMI shielding gasket.

Seamless Installation nrog 3M 9469 Adhesive Daim kab xev: Txhawm rau kom tsis muaj teeb meem thiab ruaj ntseg txheej txheem installation, peb BeCu ntiv tes Tshuag series yog nruab nrog 3M 9469 daim kab xev. Cov nplaum nplaum nplaum zoo no muaj kev sib txuas zoo heev, tso cai rau kev sib txuas yooj yim rau ntau qhov chaw. 3M 9469 daim kab xev yog tsim los tswj nws txoj kev ncaj ncees txawm tias nyob rau hauv huab cua txias, nrog rau qhov kub thiab txias, av noo, thiab raug tshuaj lom neeg. Cov nplaum nplaum ua kom ntseeg tau tias muaj kev ruaj ntseg thiab ntev EMI thaiv kev daws teeb meem, txo qhov kev pheej hmoo ntawm cov teeb liab cuam tshuam thiab cov khoom puas tsuaj.

Ntau yam ntawm Plated Finishes: Peb BeCu ntiv tes Tshuag series muaj nyob rau hauv ntau yam ntawm plated tiav, catering rau cov kev xav tau tshwj xeeb ntawm kev lag luam sib txawv thiab kev siv. Plated tiav tsis tsuas yog txhim kho qhov pom kev pom ntawm cov ntiv tes tab sis kuj muab kev tiv thaiv corrosion ntxiv thiab txhim kho hluav taws xob conductivity. Txawm hais tias koj xav tau npib tsib xee, tin, kub, nyiaj, lossis lwm yam plated tiav, peb muaj kev xaiv dav kom ua tau raws li koj xav tau. Qhov yooj yim hauv plated finishes ua kom muaj kev sib raug zoo nrog ntau yam ib puag ncig, ua kom pom kev ua haujlwm zoo thiab ua haujlwm ntev.

Xaus: Thaum nws los txog rau EMI tiv thaiv kev daws teeb meem, peb tsis muaj snag thiab foldover BeCu ntiv tes Tshuag series, nruab nrog 3M 9469 nplaum daim kab xev thiab muaj nyob rau hauv ntau yam ntawm plated finishes, stands raws li ib tug superior xaiv. Nrog nws qhov tshwj xeeb hluav taws xob conductivity, corrosion kuj, thiab yooj yim ntawm installation, no EMI shielding gasket ua kom muaj kev tiv thaiv zoo rau cov khoom siv hluav taws xob rhiab hauv ntau yam lag luam.





Kev tsim cov txheej txheem ntws ntawm BeCu Fingerstock





Qhov zoo ntawm lub tuam txhab

Ob tus kws tshaj lij Tooling designers ob leeg muaj ntau tshaj 10 Xyoo ntawm kev tsim kev paub.Peb tawg los ntawm cov txheej txheem nyuaj nyob rau hauv lub stamping teb nrog imported tooling ua cov cuab yeej thiab haib tooling manufacturing muaj peev xwm.Ntau tshaj 15 txheej pwm tuaj yeem ua tiav txhua lub hlis.

Kev xa khoom sai: 7 hnub rau cov qauv coj mus kuaj thiab 16 hnub rau cov pwm ntau lawm.

Extraordinarily Tooling lub neej: peb lub tuam txhab txais tshwj xeeb pwm cov ntaub ntawv rau ntau tshaj 100 lab lub sij hawm.

Peb Lub Tuam Txhab tsuas yog siv cov khoom siv raw los ntawm BrushWellman Co., Ltd ntawm Asmeskas.

Cov khoom siv loj:

Precision grinder: 4 poob lawm;

Milling tshuab: 3 teeb;

Drilling tshuab: 3 teeb;

Hlau-electrode txiav: 2 teeb;

millwrights: 1 set;

lwm: 5set



Environmental Requirements rau cov khoom

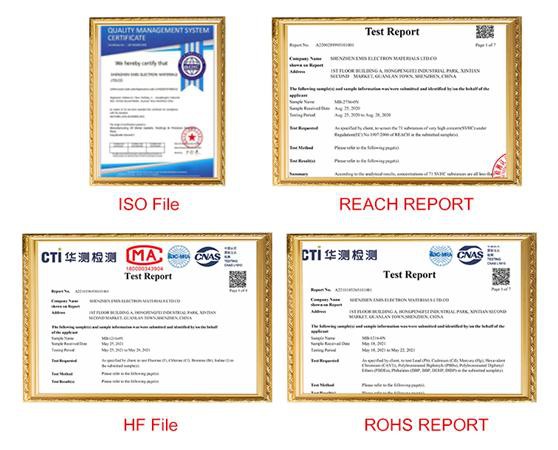

Peb cov khoom BeCu ua tau raws li qhov yuav tsum tau ua ntawm SGS daim ntawv qhia, ROHS daim ntawv qhia, REACH, Halogen-dawb (HF) daim ntawv qhia, thiab lwm yam.





Cov lus nug thiab cov yuam sij ntawm fingerstock thiab gaskets kev yuav khoom:

Q1: Dab tsi yog tsis muaj snag thiab foldover BeCu ntiv tes?

A1: Tsis muaj snag thiab foldover BeCu ntiv tes Tshuag yog hais txog ib hom ntiv tes Tshuag ua los ntawm beryllium tooj liab uas yog tsim los tiv thaiv snagging los yog ntes ntawm lwm yam khoom lossis qhov chaw. Nws nta cov qauv tsim foldover uas tso cai rau kev teeb tsa yooj yim thiab muab kev tiv thaiv EMI zoo thiab hauv av.



Q2: Dab tsi yog cov txiaj ntsig ntawm kev siv tsis muaj snag thiab foldover BeCu ntiv tes?

A2: Tsis muaj snag thiab foldover BeCu ntiv tes Tshuag muaj ntau yam txiaj ntsig. Nws txo qhov kev pheej hmoo ntawm snagging lossis ntes thaum lub sijhawm teeb tsa lossis siv, ua kom muaj kev ua haujlwm zoo thiab tiv thaiv kev puas tsuaj rau cov khoom. Lub foldover tsim tso cai rau kev ruaj ntseg sealing thiab txhim khu kev qha hluav taws xob sib txuas. Tsis tas li ntawd, beryllium tooj liab muab cov khoom siv hluav taws xob zoo heev thiab lub caij nplooj ntoos hlav rau kev tiv thaiv EMI zoo.



Q3: Hauv daim ntawv thov twg tsis muaj snag thiab foldover BeCu ntiv tes feem ntau siv?

A3: Tsis muaj snag thiab foldover BeCu ntiv tes feem ntau yog siv rau hauv kev siv hluav taws xob thiab hluav taws xob qhov twg EMI shielding, grounding, lossis hluav taws xob txuas ntxiv. Nws pom cov ntawv thov hauv cov khoom siv hluav taws xob, cov khoom sib txuas, cov rooj sib tham hauv Circuit Court, thiab lwm yam xwm txheej uas tsim nyog rau electromagnetic compatibility.



Q4: Yuav tsis muaj snag thiab foldover BeCu ntiv tes Tshuag tau yooj yim ntsia thiab tshem tawm?

A4: Yog lawm, foldover tsim ntawm BeCu ntiv tes tso cai rau kev yooj yim installation thiab tshem tawm. Nws pab txhawb kev txij nkawm, kho dua tshiab, lossis hloov cov ntiv tes cov khoom lag luam yam tsis muaj kev puas tsuaj rau cov khoom lossis cuam tshuam nrog kev ua haujlwm ntawm lub cev.
